Manufacturing test

• Trasy Enterprises, Mumbai is one of the leading manufacturers of the Hot Melt Pressure Sensitive Adhesive Coating and Punching Machines for making bulk, wholesale topical and Transdermal Skin Contact Patches.• Using Hot Melt Adhesive technology with medicine is a better solution for Transdermal Patches. The medicines are to be dissolved in oil then this mixture of oil is added to the Hot Melt Adhesive. Mixed thoroughly and made homogeneous. This medicated adhesive is used with Hot Melt Coating Machine to coat the required grammage on the release liner. Then it is laminated to the backup material. The laminate is then punched or cut to the desired size and shape.• They are packed in PET, Aluminium and LDPE laminated pouches for barrier properties. These patches are now Water resistant, Hypoallergenic, Easy to peel off, Easy to clean, the herbal content is thick, durable and sweat resistant. Same process is used for Herbal

Transdermal Patch Making Machine

INR 960000

VIEW DETAILS

This machine will make rolls of 300mm (Max.) width & Max 600mm dia. Of 270 micron PVC with hot melt glue and silicon paper. Also can make 100m rolls of 80 micron LDPE coated with hot melt on 3” paper core.Machine Type: Die coatingMax. Size of coating: 300mm, GSM: 15 to 60 Max.Speed of coating : Speed 0- 15 mpmM/c specifications: Unwind : (2 Sets)To hold 310 mm max. width material.600 mm Dia. Max.76 MM core ID.Powder BrakeWeb Guide Coating Station: Die coating.Accurate Temp. Control.All silicon rolls dynamic balanced.Back up roller Pneumatically operatedLamination Nip:Dynamic balanced Metal roll & Silicone rollOperation & pressure PneumaticDrive to the nipRewind : Turret type.To hold 310 mm max. width material.150 mm Dia. Max. or 100m rolls on turret.76 MM core ID.Tapper tension controlled winding.AC Drive for controlled winding. Permelter: Tank capacity 5 Lit.Melting Capacity 5 Lit/hrliquid tank capacity 1.5 Lit.Pump Capacity 0.4 Lit/MinAccurate Temp. Control.Accurate flow control Hot melt Hose:To Supply 0.4 Kgs/hrLength 2 mAccurate Temp. Control.DIMENTIONS: 7 m X 1.5 m X 1.5 mTotal Electrical Load : Motors 6 HP, Heaters 5.1 KWWatch the Machine in working : https://youtu.be/OG7V9R771_o?si=BtVVGLLWRg0q_gbQ

Sticky Wrap Roll making machine

INR 1500000

VIEW DETAILS

A set of Machines as Slitting, Printing and Pouch Making are required for making Sterilized Reel and Pouch Slitting Machine: 1000mmThis machine is used to convert the Jumbo rolls of the material like paper and plastic to the rolls of the smaller widths of required sizes. Printing Machine: 500mm Gravure , 3 ColourA gravure printing machine is used to print 3 colours. Name of the manufacturer and size of the pouch is printed in one colour and other 2 colours are used to print indicator inks for steam/ ETO. Sterilized Reel Pouch Making Machine. 500mm width max.This machine is specially used for making Medical Pouch, Sterilized Reel, Sterilized Pouch from two-layer material:(1) Medical Grade Paper and Compound Film or(2) Paper and Paper. (Medical bags.)Making it seal through heating mould, collected at the rewinding device after cut by the slitting blade.It is an ideal equipment used for making Sterilization Package, like Reel and Self Adhesive Pouch which has wide application in medical industry.https://youtu.be/qsLtmKPHtUE?si=SJqOEWrJVJCZyuPU

Set of Machines for Sterilization Reel

INR 2670000

VIEW DETAILS

Hot Melt Coater Specification: Model HMC 6 Machine Type: Die CoatingMax. Size of coating : 100mm, GSM: 40 to 100, Max. Speed of coating : Speed 20 mpm. 16, 21... Till 43mm tape you can run at 20 mpm. @ 7.2 gms per meter in 16 mm, and all other in same proportion. Bigger sizes will be proportionally less speed. Eg. 100 mm will run at 10 mpm.Synchronized coating thickness with speed.Automatic cutting with PLC and Touch Screen 1. Unwind:2 StationsTo hold 100 mm width Silicon paper.76 MM core ID.Powder Brake2. Coating Station:Slot Die coating, Accurate Temp. Control.All silicon rolls dynamic balanced.Back up roller Pneumatically operated.AC Drive for coating roller.3. Lamination Nip:Dynamic balanced Metal roll, Silicone rollOperation & pressure PneumaticAC Drive to the nip4. Rewind: 4 StationsTo hold max. 100 mm width material.300 mm Dia. Max.18 MM core ID.Tapper tension controlled winding.AC Drive for controlled winding.5. Permelter: 2 unitsTank capacity 50 Lit.Melting Capacity 25 Lit/hrDry tank capacity: 25 Lit.liquid tank capacity 0.5 Lit.Pump Capacity 0.5 Lit/MinAccurate Temp. Control.6. Hot melt HoseTo Supply 5 Kgs/hrLength 2 mAccurate Temp. Control.DIMENTIONS: 16’X 4’X 5.5’Total Electrical Load : Motors 3 HP + Heaters 18 KW

Hot Melt Adhesive Coating Machine For

INR 1500000

VIEW DETAILS

A. Applied rangeRTH Hot Melt Coating Machine is suitable for producing adhesive sticker, label paper.B. Technical parameter1. Coating method: SLOT DIE2. Max. available coating width: 1100mm3. Coating quality: 12-50g/m2(depends on your product)4. Equality level: 20g-45g/㎡≤±25. Max. line speed: 150m/min6. Length of all roller surface: 1200mm7. Max. rewinding diameter: 1000mm8. Max. unwinding diameter: 1000mm. Roll weight of 1000kgs.9. Unwinding equipment: 2 sets10. Rewinding equipment: 1 set11. RP120H hot melt sprayer: 1 set12. Melt glue speed: 180kg/h (EVA.3000 centipoise 165℃)13. Length of glue-carrying pipe: 3m (1 piece)14. Temperature: 230℃15. Power: app. 40KW16. Power supply:415V/3ph/50hz (Can be customized)17. The quantity of glue can be adjusted independently or synchronously with the main machine.C. Main working parts a) Machine rack1. The first, second unwinding stand is made of square steel, U steel and steel plate.2. The machine rack is made of 25mm steel plate, supported by steel tube.3. The transmission part cover is made of 1.5mm steel plate.b) First and second unwinding part1. Adopt single mechanism unwinding design2. Magnetic powder brake for unwinding: 200N·M; 2 set (Dongguan Weizhen)3. Tension control system is Automatic tension control system, 2 set (Ruian Zhongxing)4. Unwinding shaft: 3″ ; 2 pieces.5. Both unwinding can lift electrically, adopts one set of EPC edge position system(Bianfu China), A 3rd EPC edge guider provided at top of the frame before lamination. c) Rewinding part1. Adopt single shaft mechanism unwinding design2. Rewinding motor: 11KW; 1set3. Rewinding shaft: 3″ 1 pieces4. Rewinding length can be controlled automatically or manually5. 3 Pcs Bottom & top sheer Cutter with gears provided with trim blower.d) Glue melt tank (RP120H)1. The shell is made of U steel, square steel and 1.2mm steel plate.2. Use aluminum alloy to build. Three-layers (upper, middle and lower) structure.There is adhibition preventing coat on the inside surface.3. Adopt high-temperature-resistant high-precision gear glue pump4. Adopt external precise filters 2 Pcs. (2 pcs extra as spares)5. The glue pump speed is controlled by gear motor6. Adopt high precision filter which is set outside7. Temperature of each layer is controlled by PID system independently8. Max. temperature is 210℃9. Lay in capacity:400L10. Melt glue speed: 180kg/h (EVA.3000 centipoise 165℃)11. Heating power: app. 25KW e) Coating, laminating & roller part1. Coating head: temperature-resistant alloy steel.2. Coating roller: ￠240mm silicon rubber roller with 2 rotary connector3. Cooling roller: ￠500mm chromed steel roller with 2 rotary connector4. Laminating roller: ￠240mm silicon rubber roller with 2 rotary connector5. Traction roller: ￠240mm steel pain roller(Teflon treatment) with 2 rotary connector6. Guide roller: ￠80mm aluminum roller, surface anodic protection f) Transmission part1. Main motor: 7.5KW 1 set (Anhui Wannan)2. Rewind Motor : 11 Kw (Anhui Wannan)3. Glue pump motor: 2.2KW 1 set (TaiwanCPG motor)4. Main machine use belt and gear to transmitg) Pneumatic control part1. Cylinder on coating head: ￠63mm 2 pieces2. Cylinder on laminating press roller: ￠100mm 2 piecesh) Electric part1. Main machine transducer: 7.5 KW; 1 piece (Inovance)2. Glue tank transducer: 2.2KW; 1 piece (Inovance)3. Temperature controller: digital PID (Delta)4. Heater (coating head): 8KW5. Touch screen: 10” 1set (weinview)6. PLC: 1 set (Inovance)7. Knob switch: several pcs Schneider, France8. Main power switch: 2 group Schneider, France9. A.C. contactor: 7 pieces (Schneider, France)10. Empty running breaker: (CHINT)11. Intermediate relay: 4 pieces (OMRON)12. Servo motor drive: (Inovance, China) i) Supporting facilities (Customer responsibility)1. Power: XXXV / Xphase/XXHz (three phase four wire system)2. Barometric pressure: 6~8/kg/cm23. Water pressure: 2~3kg/cm2 (water temperature :10~16℃)

Paper Gumming Machie Hot Melt Coating

INR 7260000

VIEW DETAILS

Machine Specification:This machine will make rolls of 300 mm (Max.) with 30 gsm hot melt coating.Process: All processes will be run inline.PVC film Printed with Gravure process.2 rolls of Silicon paper of 290 mm will be coated with Hot Melt of 30 gsm.And Lamination (transfer of HM on PVC) of Si papers & 0.270mm PVC film.Hole Punching, Perforation and Cutting of Si papers laminated to PVC rolls in set of 25(setable) pcs. Machine Type: Die coatingMax. Size of coating: 300mm, GSM: 15 to 65Max. Speed of coating : Speed 15 mpm @30gsmM/c specifications:Unwind 1: ( 2Sets)To hold 310 mm max. width material. (Si Paper)450 mm Dia. Max.76 MM core ID.Powder BrakeWeb GuideUnwind 2:To hold 300 mm width material. (PVC of 0.27mm)450 mm Dia. Max.76 MM core ID.Powder BrakeWeb GuideCoating Station: Die coating (2 Sets)Accurate Temp. Control.All silicon rolls dynamic balanced.Back up roller Pneumatically operatedLamination Nip:Dynamic balanced Metal roll & Silicone rollOperation & pressure PneumaticDrive to the nipCutting:A accumulator provided for the coated materialTo punch 1 hole of 5 mm and Perforation line for easy tear.Pneumatically cut to the set size. Permelter: (2 Sets)Tank capacity 20 Lit.Melting Capacity 8 Lit/hrliquid tank capacity 5 Lit.Pump Capacity 0.4 Lit/MinAccurate Temp. Control.Accurate flow controlHot melt Hose (2 Sets)To Supply 0.4 Kgs/hrLength 2 mAccurate Temp. Control.8. DIMENTIONS: 4 m X 2 m X 2 m9. Total Electrical Load : Motors 7 HP, Heaters 7.5 KW

Insect Sticky Trap Making Machine

INR 2400000

VIEW DETAILS

TYPE:Three side seal {with two webs} pouch or Two side seal rolls making machine.USES:Designed to make pouches and rolls of Tyvek (medical Grade) / Paper (Medical Grade) with HM film or a laminate film in roll form and with heat sealing property.Unwind 1:To hold 500 mm width material. (Paper), Min. 50 mm460 mm Dia. Max.76 MM core ID.Powder Brake 5 Nm with controllerUnwind 2:To hold 500 mm width material. (Tyvek), Min. 50 mm460 mm Dia. Max.76 MM core ID.Powder Brake 5 Nm with controllerMAIN FRAME:Fabricated on 75X40mm MS Chanel. Heavy construction made, vibration less to suit 100-p/min pouching speed.PUNCHING UNIT:One ‘D’ Punch unit to punch a hole with movement connected through pneumatic piston for up and down motion. Pressure controlled through pneumatic control. Time controlled through PLC. SIDE SEALER (L) & (R):2 units for left and Right side provided with movement connected through pneumatic piston for up and down motion. Pressure controlled through pneumatic control. Time controlled through PLC.Winding unit:A tension controlled winding unit provided for winding of 2 side sealed rolls. (Not shown in line diagram) 7. Flexo Unit:To print indicator ink mark in continuous printing. CHEVRON SEALER:Chevron shaped sealing die unit with movement connected through pneumatic piston for up and down motion. Pressure controlled through pneumatic control. Time controlled through PLC. Quotation includes only 1 pcs of Die. Extra Die sealer will be Rs. 6000/- per pc, extra.PHOTO CELL:An electronic eye to control the driving servo motor for print or punch registration.CUTTING BLADE:Cutting Blade (22

Sterile Pouch Making Machine

INR 900000

VIEW DETAILS

About Our Cut to Length, Point Cutting, Label Cutting Machines: Trasy Enterprises is engaged in supplying and exporting of Cut to Length, Point Cutting and Label Cutting machines. Get highly efficient machines for Label Cutting, Cut to Length and Point Cutting from Trasy Enterprises Plastics at best price. These machines are running successfully all over India which are exported world wide for packing various products. Features : • Unwind with Pneumatic Brakes. • Pneumatic knife for speedy cutting. • Perforation is adjustable by pressure of pneumatic. • Printed & unprinted accurate label making. • Maximum Label Size: 300 mm X 300 mrn • Max. Speed: 335 PPM depending on size • Motor Load: 0.5 Hp

Roll to Sheet Cutting Machine

INR 420000

VIEW DETAILS

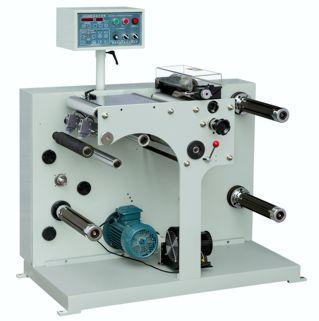

Slitting speed : 20-90m/minMax roll width ： 520mmMin slitting width ： 8mmMax unwinding diameter： 500mmMax rewinding diameter： 500mmCore diameter : 3inchSlitting precision ： ±0.1mmMachine weight ： 800kgVoltage ： 220vMain power : 1.5KWTotal power : 3KWMain motor 1.5KW 1pcWeb guider 1setUnwinding magnetic powder brake 2.5KG 1setRewinding magnetic powder brake 2.5KG 2setsLength counter 1pcVFD 1.5KW 1pcRazor blade 70pcs

Straw Paper Slitting Machine

INR 849600

VIEW DETAILS

Hot Melt Coating Machine Specification: HMC-20 Hot Melt Coating Machine is suitable for producing adhesive sticker, label paper, medical tapes, double-side adhesive tapes, cloth tapes, double-side foam adhesive tape, clean adhesive tape, craft paper tape, Aluminum foil tapes, fabric tapes, shoes materials and etc. of 510mm width & 600mm dia. with 15 gsm to 80 gsm hot melt coating.

Sticker Paper Hot Melt Coating Machine

INR 2130000

VIEW DETAILS

Fly sticky Tape Making Machine:Trasy Enterprises has developed a machine to make Sticky fly ribbon, fly paper, fly sticker, fly strip or fly tapes by coating Hot Melt Adhesive on tape. Hot Melt Adhesives are water resistant hence can withstand all seasons in open air and sun light. This product is very effective to arrest fly population and wondering of flies in neighborhoods of dairy and poultry manure. The house fly is considered the major pest fly species associated with dairy and poultry manure, especially in caged-layer operations. This is a cause of public health nuisance complaints in surrounding communities. The effective house fly dispersal ranges from their preferred breeding sources to 1 kilometre radius area. The flies are capable of harbouring more than 100 human and animal disease-causing organisms. The machine produces sticky tape at 50 mpm speed. Machine has a turret system for high productivity.

Hot Melt Fly sticky strap making machi

INR 1230000

VIEW DETAILS

MODEL TE 211 - 1300 Effective width 1320 mmSet includes Slitting, Conveyor & Core loading -unloading, 1 mouldMax. unwind diameter 800mmMin. slitting width 20mmMax. rewind diameter(shaft3

Automatic BOPP Tape Slitting with Conv

INR 3600000

VIEW DETAILS
