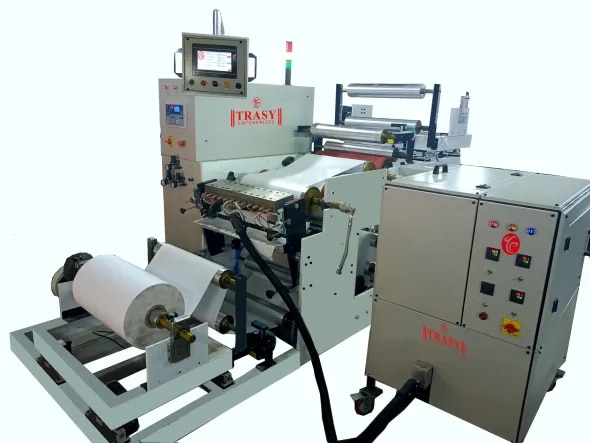

Sticker Paper Hot Melt Coating Machine

Hot Melt Coating Machine Specification:

HMC-20 Hot Melt Coating Machine is suitable for producing adhesive sticker, label paper, medical tapes, double-side adhesive tapes, cloth tapes, double-side foam adhesive tape, clean adhesive tape, craft paper tape, Aluminum foil tapes, fabric tapes, shoes materials and etc. of 510mm width & 600mm dia. with 15 gsm to 80 gsm hot melt coating.

Machine Type: Die coating

Max. Size of coating: 510mm, GSM: 15 to 55 Max. Speed of coating: Speed 20 mpm at

M/c specifications:

1. Unwind 1:

To hold 510 mm width material.

1000 mm Dia. Max.

76 MM core ID.

Magnetic Brake

Web aligner

2. Coating Station: Die coating.

Accurate Temp. Control.

All silicon rolls dynamic balanced.

Back up roller Pneumatic operated.

3. Unwind 2:

To hold 510 mm width material.

1000 mm Dia. Max.

76 MM core ID.

Magnetic Brake

Web aligner

4. Lamination Nip:

Dynamic balanced Metal roll & Silicone roll

Operation & pressure Pneumatic

AC Drive to the nip

5. Rewind :

Center winding system

To hold 510mm width material.

600 mm Dia. Max.

76 MM core ID.

Tapper tension controlled winding.

AC Drive for controlled winding.

6. Permelter:

Tank capacity 25 Lit.

Melting Capacity 12.5 Lit/hr

Pump Capacity 0.4 Lit/Min

Accurate Temp. Control.

Accurate flow control

7. Hot melt Hose

To Supply 0.4 Kgs/hr

Length 2 m

Accurate Temp. Control.

8. DIMENTIONS: 5m X 2.5m X1.5m

9. Total Electrical Load : Motors 6 KW & Heaters 10 KW
