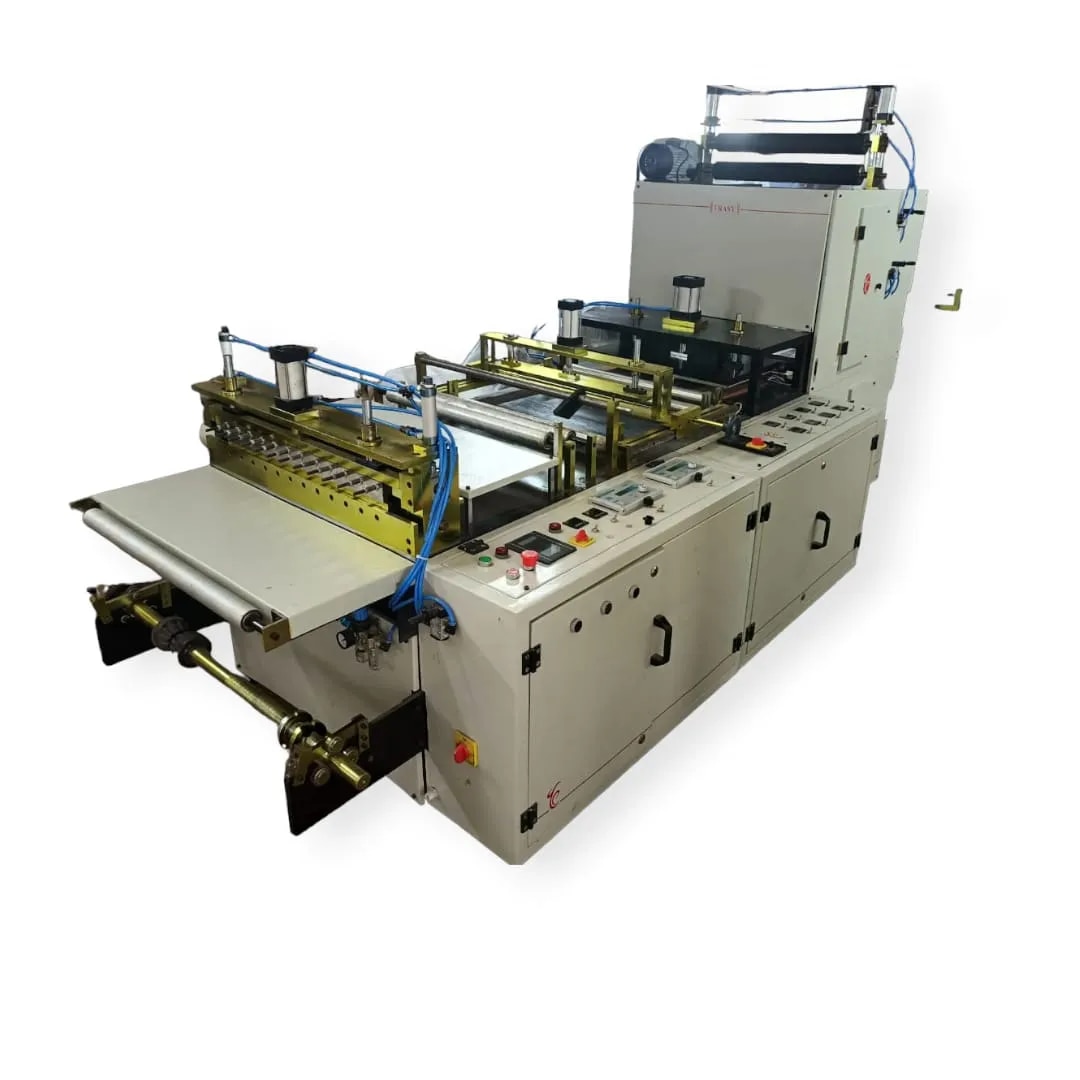

Sterile Pouch Making Machine

TYPE:

Three side seal {with two webs} pouch or Two side seal rolls making machine.

USES:

Designed to make pouches and rolls of Tyvek (medical Grade) / Paper (Medical Grade) with HM film or a laminate film in roll form and with heat sealing property.

Unwind 1:

To hold 500 mm width material. (Paper), Min. 50 mm, 460 mm Dia. Max. 76 MM core ID. Powder Brake 5 Nm with controller

Unwind 2:

To hold 500 mm width material. (Tyvek), Min. 50 mm 460 mm Dia. Max. 76 MM core ID. Powder Brake 5 Nm with controller

MAIN FRAME:

Fabricated on 75X40mm MS Chanel. Heavy construction made, vibration less to suit 100-p/min pouching speed.

PUNCHING UNIT:

One ‘D’ Punch unit to punch a hole with movement connected through pneumatic piston for up and down motion. Pressure controlled through pneumatic control. Time controlled through PLC.

SIDE SEALER (L) & (R):

2 units for left and Right side provided with movement connected through pneumatic piston for up and down motion. Pressure controlled through pneumatic control. Time controlled through PLC.

Winding unit:

A tension controlled winding unit provided for winding of 2 side sealed rolls. (Not shown in line diagram)

Flexo Unit: To print indicator ink mark in continuous printing.

CHEVRON SEALER: Chevron shaped sealing die unit with movement connected through pneumatic piston for up and down motion. Pressure controlled through pneumatic control. Time controlled through PLC. Quotation includes only 1 pcs of Die. Extra Die sealer will be Rs. 6000/- per pc, extra.

PHOTO CELL:

An electronic eye to control the driving servo motor for print or punch registration.

CUTTING BLADE:

Cutting Blade (22") movement connected through pneumatic piston for to and fro motion. Pressure controlled through pneumatic control. Time controlled through PLC.

Machine contains:

PRESSURE ROLLS: Rubber rolls pneumatically operated and controlled. All IDLERS: Idlers of Aluminum Seamless pipe by machine.

CONTROL PANEL: Suitable for A.C. drives & Servo drive with microprocessor.

COUNTER: Counter to give buzzer after 100 PCs. & integrator total counter.

TOTAL ELECTRIC LOAD: 1.5 KW Drive power. 3 K.W. Heating Load.
