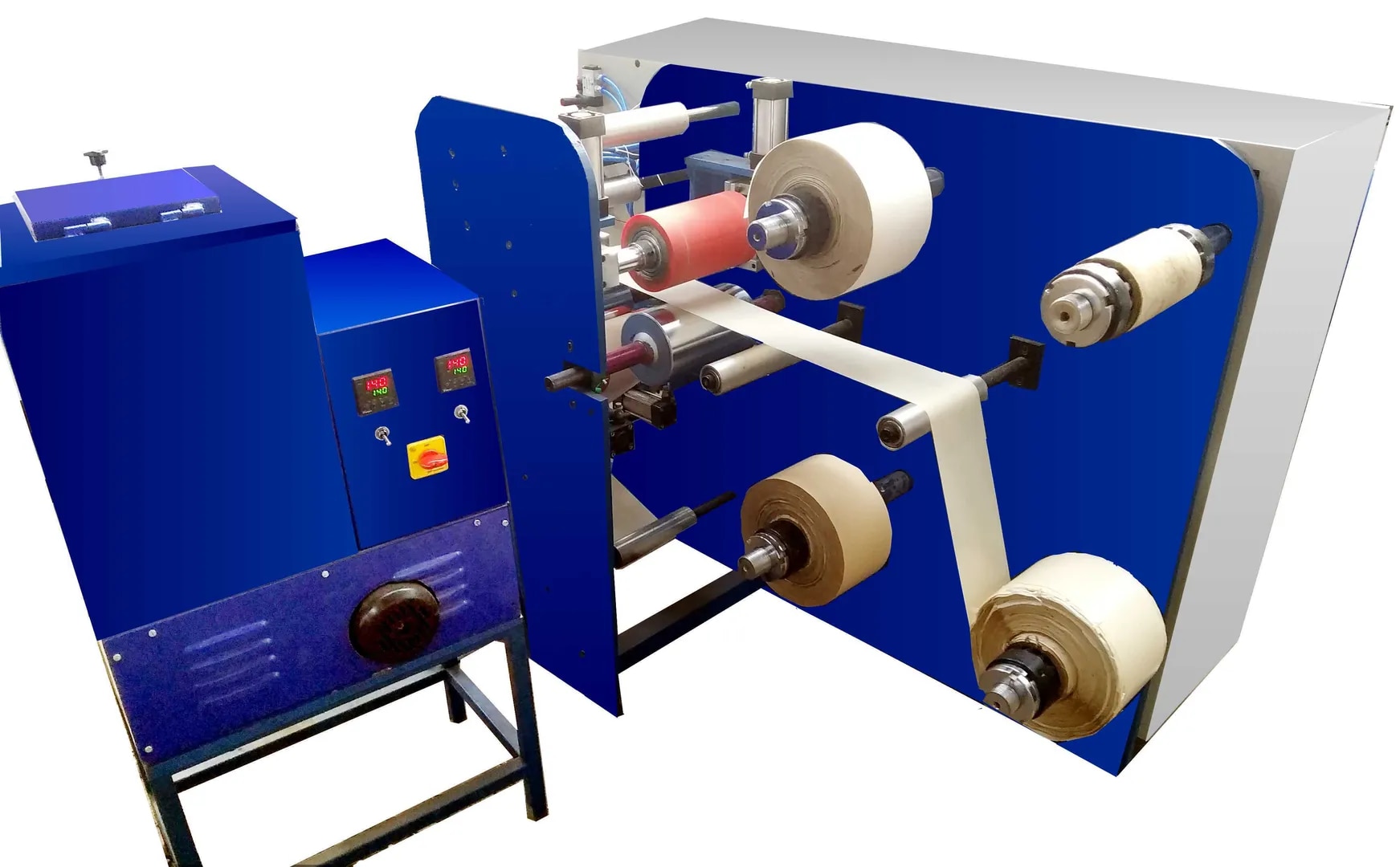

Hot Melt Coating Machine for Narrow Web HMC6

Hot Melt Coater Specification: MELTACOATER 6” RTR

Machine Type: Die Coating

Max. Size of coating : 100mm, GSM: 20 to 175, Max. Speed of coating : Speed 10 mpm at 50 GSM

M/c specifications:

1. Unwind: 1

To hold 110 mm width Silicon paper.

76 MM core ID.

Powder Brake

2. Coating Station:

Slot Die coating

All metal rolls heated evenly.

Accurate Temp. Control.

All silicon rolls dynamic balanced.

Back up roller Pneumatically operated.

AC Drive for coating roller.

3. Lamination Nip:

Dynamic balanced Metal roll, Silicone roll

Operation & pressure Pneumatic

AC Drive to the nip

4. Renwind: 2 Stations

To hold max. 110 mm width material.

400 mm Dia. Max.

76 MM core ID.

Tapper tension controlled winding.

AC Drive for controlled winding.

5. Permelter:

Tank capacity 5 Lit.

Melting Capacity 5 Lit/hr

Dry tank capacity: 5 Lit.

liquid tank capacity 0.5 Lit.

Pump Capacity 0.5 Lit/Min

Accurate Temp. Control.

6. Hot melt Hose

To Supply 5 Kgs/hr

Length 1 m

Accurate Temp. Control.

DIMENTIONS: 2 X 1.25 X 1.5 m

Total Electrical Load : 7.5 KW

Please visit following YouTube links to watch the machine in working::

https://youtu.be/YPdszsayx4Q

https://youtu.be/k94i2Mqb7lM

https://youtu.be/4LldipAYRCY

https://youtu.be/OJIzcvaZ0wc

https://youtu.be/ykYQJavzFds
