mouse trap machine

Hot Melt Coater Specification: MELTACOATER 6” RTRMachine Type: Die CoatingMax. Size of coating : 100mm, GSM: 20 to 175, Max. Speed of coating : Speed 10 mpm at 50 GSMM/c specifications:1. Unwind: 1To hold 110 mm width Silicon paper.76 MM core ID.Powder Brake2. Coating Station:Slot Die coating synchronized line speed and gear pump with PLCAll metal rolls heated evenly.Accurate Temp. Control.All silicon rolls dynamic balanced.Back up roller Pneumatically operated.AC Drive for coating roller.3. Lamination Nip:Dynamic balanced Metal roll, Silicone rollOperation & pressure PneumaticAC Drive to the nip4. Renwind: To hold max. 110 mm width material.400 mm Dia. Max.76 MM core ID.Tapper tension controlled winding.AC Drive for controlled winding.5. Permelter:Tank capacity 5 Lit.Melting Capacity 5 Lit/hrDry tank capacity: 5 Lit.liquid tank capacity 0.5 Lit.Pump Capacity 0.5 Lit/MinAccurate Temp. Control.6. Hot melt HoseTo Supply 5 Kgs/hrLength 1 mAccurate Temp. Control.DIMENTIONS: 2x1.25x 1.5 mTotal Electrical Load : 8 KWWatch the machine in running: https://youtu.be/LeLSOluz7Ig

Hot melt Coating Machines HMC 6 PLC

INR 870000

Hot Melt Coating Machine Specification: HMC-20 Hot Melt Coating Machine is suitable for producing adhesive sticker, label paper, medical tapes, double-side adhesive tapes, cloth tapes, double-side foam adhesive tape, clean adhesive tape, craft paper tape, Aluminum foil tapes, fabric tapes, shoes materials and etc. of 510mm width & 600mm dia. with 15 gsm to 40 gsm hot melt coating. Process1. Silicon paper of max. 510mm will be coated with hot melt.2. Lamination (transfer of HM on Paper) of Si paper & Paper in roll form.3. Winding of Si paper & Paper in roll.Machine Type: Die coatingMax. Size of coating: 520mm, GSM: 15 to 100 Max. Speed of coating: Speed 25 mpm @ 20 gsm.M/c specifications:1. Unwind 1: To hold 510 mm width material.600 mm Dia. Max.76 MM core ID.Magnetic Powder BrakeWeb aligner2. Coating Station: Die coating.Accurate Temp. Control.All silicon rolls dynamic balanced.Back up roller Pneumatic operated.3. Unwind 2: To hold 510 mm width material.500 mm Dia. Max.76 MM core ID.Magnetic Powder BrakeWeb aligner4. Lamination Nip:Dynamic balanced Metal roll & Silicone rollOperation & pressure PneumaticClutch Drive to the nip5. Rewind :Center winding systemTo hold 510mm width material.600 mm Dia. Max.76 MM core ID.Tapper tension controlled winding. Magnetic Powder Clutch for controlled winding. 6. Permelter:Tank capacity 30 Lit.Melting Capacity 30 Lit/hrPump Capacity 0.4 Lit/MinAccurate Temp. Control.Accurate flow control7. Hot melt HoseTo Supply 0.4 Kgs/hrLength 2 mAccurate Temp. Control.8. DIMENTIONS: 7m X 2m X1.5m 9. Total Electrical Load : 15 KW

Hot Melt Coating Automatic Machine HMC

INR 1800000

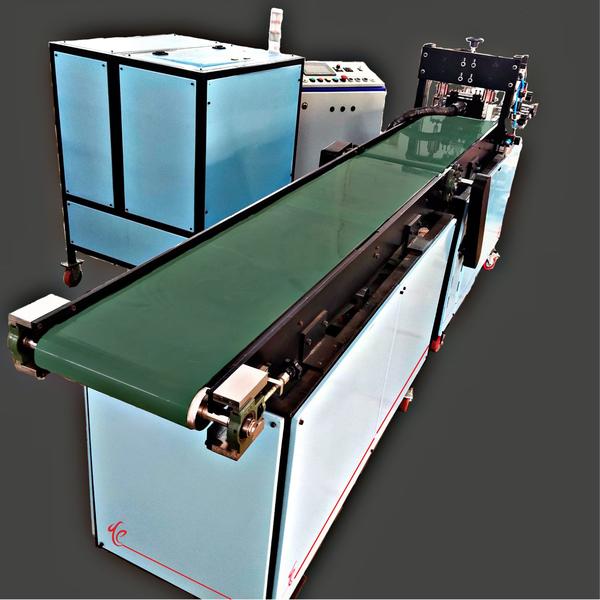

Mouse Sticky Trap MachineSpecification:This machine is designed for making Rat traps on boards with hot melt adhesive.Board size Min. and Max. 10” max. width and 4” min. widthCoating size 210mm (Max.) X 100mm (Min.) Max. Machine Speed 30 Pcs/min @ 28gms per padMain Motor 3.75 KWMax Gluing Width 210 mmGlue Tank Capacity 50 kg Machine Size 4000x650x1200mmPower Requirement 10 Kw, 415V, 50HZ, 3 Phasea) Glue melt tank1. The shell is made of steel, square steel and 1.2mm steel plate.2. Use aluminium alloy to build. Two-layer (upper and lower) structure. 3. Adopt high-temperature-resistant high-precision gear glue pump4. Adopt external precise filter.5. The glue pump speed is controlled by gear motor6. Temperature of each layer is controlled by PID system independently7. Max. temperature is 200℃8. Melt glue speed: 40kg/hr (EVA.3000 centipoise 165℃)9. Heating power: app. 6 KW b) Hot Hose1. A 3m length hot melt hose provided. 2. 230V AC , 900 w power.c) Slot die1. Coating head: Slot die temperature-resistant alloy steel. SKD112. Mounted on Pneumatic piston for up – down moment3. Coating width adjustment with shimps insert4. Levelling in transfers direction to conveyor is provided.d) Auto Feeder1. An automatic system for feeding one board at a time is provided.2. An adjustable edge guiding scale provided for change in size.3. A PVC belt conveyer belt provided for carrying the board.e) Transmission part1. Main motor: 2 KW 1 set 2. Glue pump motor: 1.0KW 1 set 3. Main machine driven by use of belt, chain and gear to transmit.f) Pneumatic control part1. Cylinder on slot die, feeding and stopping with head: ￠50mm for each2. Suitable solenoid valves, flow control and connectors.g) Electric part1. Main machine VFD: 2 KW; 1 piece 2. Glue tank VFD: 1 KW; 1 piece3. Temperature controller: digital PID 4. Heaters: 8KW 5. Touch screen: 10” 1set 6. PLC: 1 set

Mouse Sticky Trap Making Machine

INR 1050000

Filter using tags

Hot Melt Coater Specification: MELTACOATER 6” RTRMachine Type: Die CoatingMax. Size of coating : 100mm, GSM: 20 to 175, Max. Speed of coating : Speed 10 mpm at 50 GSMM/c specifications:1. Unwind: 1To hold 110 mm width Silicon paper.76 MM core ID.Powder Brake2. Coating Station:Slot Die coating synchronized line speed and gear pump with PLCAll metal rolls heated evenly.Accurate Temp. Control.All silicon rolls dynamic balanced.Back up roller Pneumatically operated.AC Drive for coating roller.3. Lamination Nip:Dynamic balanced Metal roll, Silicone rollOperation & pressure PneumaticAC Drive to the nip4. Renwind: To hold max. 110 mm width material.400 mm Dia. Max.76 MM core ID.Tapper tension controlled winding.AC Drive for controlled winding.5. Permelter:Tank capacity 5 Lit.Melting Capacity 5 Lit/hrDry tank capacity: 5 Lit.liquid tank capacity 0.5 Lit.Pump Capacity 0.5 Lit/MinAccurate Temp. Control.6. Hot melt HoseTo Supply 5 Kgs/hrLength 1 mAccurate Temp. Control.DIMENTIONS: 2x1.25x 1.5 mTotal Electrical Load : 8 KWWatch the machine in running: https://youtu.be/LeLSOluz7Ig

Hot melt Coating Machine

INR 870000

Hot Melt Coating Machine Specification: HMC-20 Hot Melt Coating Machine is suitable for producing adhesive sticker, label paper, medical tapes, double-side adhesive tapes, cloth tapes, double-side foam adhesive tape, clean adhesive tape, craft paper tape, Aluminum foil tapes, fabric tapes, shoes materials and etc. of 510mm width & 600mm dia. with 15 gsm to 40 gsm hot melt coating. Process1. Silicon paper of max. 510mm will be coated with hot melt.2. Lamination (transfer of HM on Paper) of Si paper & Paper in roll form.3. Winding of Si paper & Paper in roll.Machine Type: Die coatingMax. Size of coating: 520mm, GSM: 15 to 100 Max. Speed of coating: Speed 25 mpm @ 20 gsm.M/c specifications:1. Unwind 1: To hold 510 mm width material.600 mm Dia. Max.76 MM core ID.Magnetic Powder BrakeWeb aligner2. Coating Station: Die coating.Accurate Temp. Control.All silicon rolls dynamic balanced.Back up roller Pneumatic operated.3. Unwind 2: To hold 510 mm width material.500 mm Dia. Max.76 MM core ID.Magnetic Powder BrakeWeb aligner4. Lamination Nip:Dynamic balanced Metal roll & Silicone rollOperation & pressure PneumaticClutch Drive to the nip5. Rewind :Center winding systemTo hold 510mm width material.600 mm Dia. Max.76 MM core ID.Tapper tension controlled winding. Magnetic Powder Clutch for controlled winding. 6. Permelter:Tank capacity 30 Lit.Melting Capacity 30 Lit/hrPump Capacity 0.4 Lit/MinAccurate Temp. Control.Accurate flow control7. Hot melt HoseTo Supply 0.4 Kgs/hrLength 2 mAccurate Temp. Control.8. DIMENTIONS: 7m X 2m X1.5m 9. Total Electrical Load : 15 KW

Hot Melt Coating Automat

INR 1800000

Mouse Sticky Trap MachineSpecification:This machine is designed for making Rat traps on boards with hot melt adhesive.Board size Min. and Max. 10” max. width and 4” min. widthCoating size 210mm (Max.) X 100mm (Min.) Max. Machine Speed 30 Pcs/min @ 28gms per padMain Motor 3.75 KWMax Gluing Width 210 mmGlue Tank Capacity 50 kg Machine Size 4000x650x1200mmPower Requirement 10 Kw, 415V, 50HZ, 3 Phasea) Glue melt tank1. The shell is made of steel, square steel and 1.2mm steel plate.2. Use aluminium alloy to build. Two-layer (upper and lower) structure. 3. Adopt high-temperature-resistant high-precision gear glue pump4. Adopt external precise filter.5. The glue pump speed is controlled by gear motor6. Temperature of each layer is controlled by PID system independently7. Max. temperature is 200℃8. Melt glue speed: 40kg/hr (EVA.3000 centipoise 165℃)9. Heating power: app. 6 KW b) Hot Hose1. A 3m length hot melt hose provided. 2. 230V AC , 900 w power.c) Slot die1. Coating head: Slot die temperature-resistant alloy steel. SKD112. Mounted on Pneumatic piston for up – down moment3. Coating width adjustment with shimps insert4. Levelling in transfers direction to conveyor is provided.d) Auto Feeder1. An automatic system for feeding one board at a time is provided.2. An adjustable edge guiding scale provided for change in size.3. A PVC belt conveyer belt provided for carrying the board.e) Transmission part1. Main motor: 2 KW 1 set 2. Glue pump motor: 1.0KW 1 set 3. Main machine driven by use of belt, chain and gear to transmit.f) Pneumatic control part1. Cylinder on slot die, feeding and stopping with head: ￠50mm for each2. Suitable solenoid valves, flow control and connectors.g) Electric part1. Main machine VFD: 2 KW; 1 piece 2. Glue tank VFD: 1 KW; 1 piece3. Temperature controller: digital PID 4. Heaters: 8KW 5. Touch screen: 10” 1set 6. PLC: 1 set

Mouse Sticky Trap Making

INR 1050000
