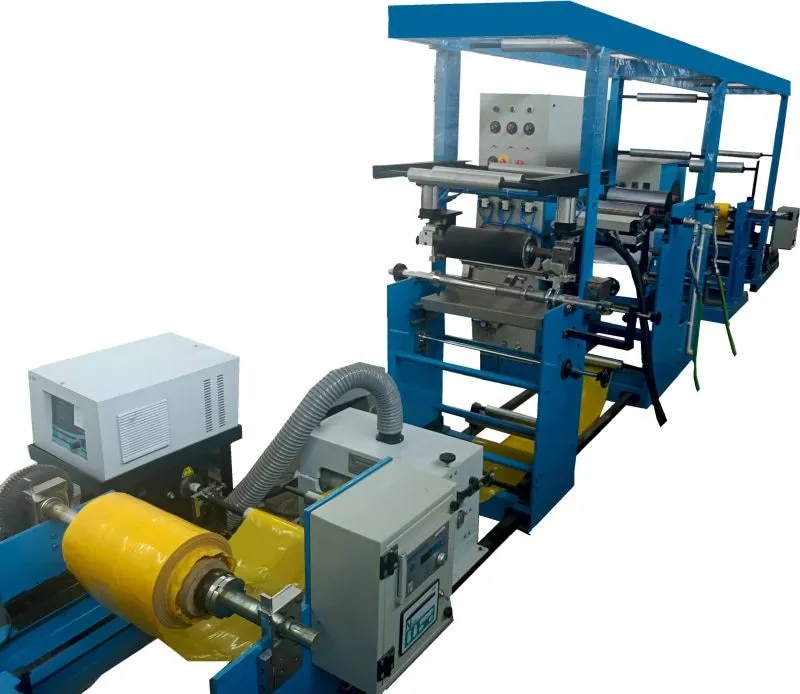

Sticky Wrap Roll making machine

This machine will make rolls of 300mm (Max.) width & Max 600mm dia. Of 270 micron PVC with hot melt glue and silicon paper. Also can make 100m rolls of 80 micron LDPE coated with hot melt on 3” paper core.

Machine Type: Die coating

Max. Size of coating: 300mm, GSM: 15 to 60 Max.

Speed of coating : Speed 0- 15 mpm

M/c specifications:

Unwind : (2 Sets)

To hold 310 mm max. width material.

600 mm Dia. Max.

76 MM core ID.

Powder Brake

Web Guide

Coating Station: Die coating.

Accurate Temp. Control.

All silicon rolls dynamic balanced.

Back up roller Pneumatically operated

Lamination Nip:

Dynamic balanced Metal roll & Silicone roll

Operation & pressure Pneumatic

Drive to the nip

Rewind : Turret type.

To hold 310 mm max. width material.

150 mm Dia. Max. or 100m rolls on turret.

76 MM core ID.

Tapper tension controlled winding.

AC Drive for controlled winding.

Permelter:

Tank capacity 5 Lit.

Melting Capacity 5 Lit/hr

liquid tank capacity 1.5 Lit.

Pump Capacity 0.4 Lit/Min

Accurate Temp. Control.

Accurate flow control

Hot melt Hose:

To Supply 0.4 Kgs/hr

Length 2 m

Accurate Temp. Control.

DIMENTIONS: 7 m X 1.5 m X 1.5 m

Total Electrical Load : Motors 6 HP, Heaters 5.1 KW

Watch the Machine in working : https://youtu.be/OG7V9R771_o?si=BtVVGLLWRg0q_gbQ
