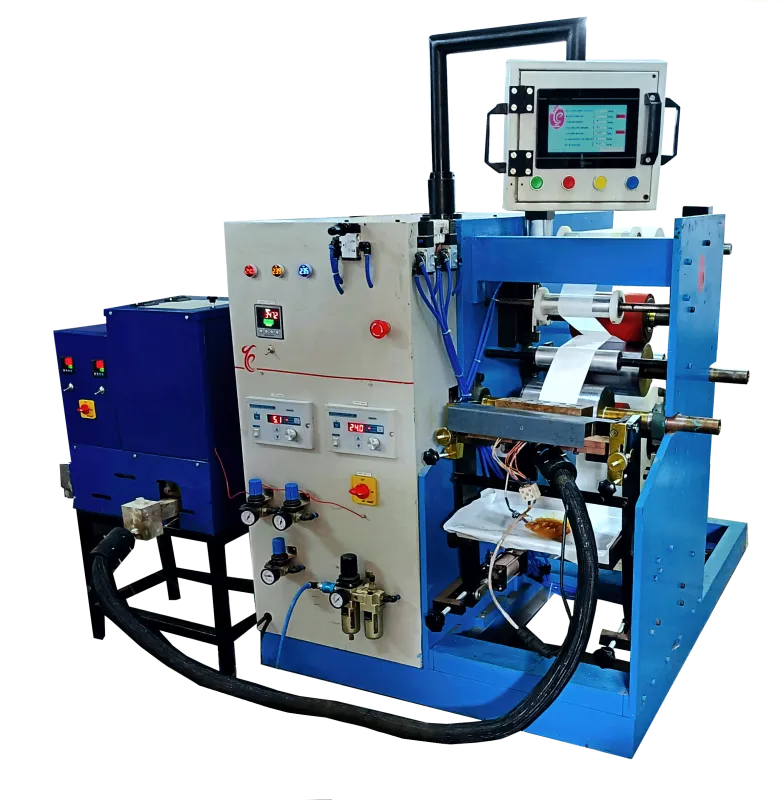

Hot melt Coating Machines HMC 6 PLC

Hot Melt Coater Specification: MELTACOATER 6” RTR

Machine Type: Die Coating

Max. Size of coating : 100mm, GSM: 20 to 175, Max. Speed of coating : Speed 10 mpm at 50 GSM

M/c specifications:

1. Unwind: 1

To hold 110 mm width Silicon paper.

76 MM core ID.

Powder Brake

2. Coating Station:

Slot Die coating synchronized line speed and gear pump with PLC

All metal rolls heated evenly.

Accurate Temp. Control.

All silicon rolls dynamic balanced.

Back up roller Pneumatically operated.

AC Drive for coating roller.

3. Lamination Nip:

Dynamic balanced Metal roll, Silicone roll

Operation & pressure Pneumatic

AC Drive to the nip

4. Renwind:

To hold max. 110 mm width material.

400 mm Dia. Max.

76 MM core ID.

Tapper tension controlled winding.

AC Drive for controlled winding.

5. Permelter:

Tank capacity 5 Lit.

Melting Capacity 5 Lit/hr

Dry tank capacity: 5 Lit.

liquid tank capacity 0.5 Lit.

Pump Capacity 0.5 Lit/Min

Accurate Temp. Control.

6. Hot melt Hose

To Supply 5 Kgs/hr

Length 1 m

Accurate Temp. Control.

DIMENTIONS: 2x1.25x 1.5 m

Total Electrical Load : 8 KW

Watch the machine in running: https://youtu.be/LeLSOluz7Ig
