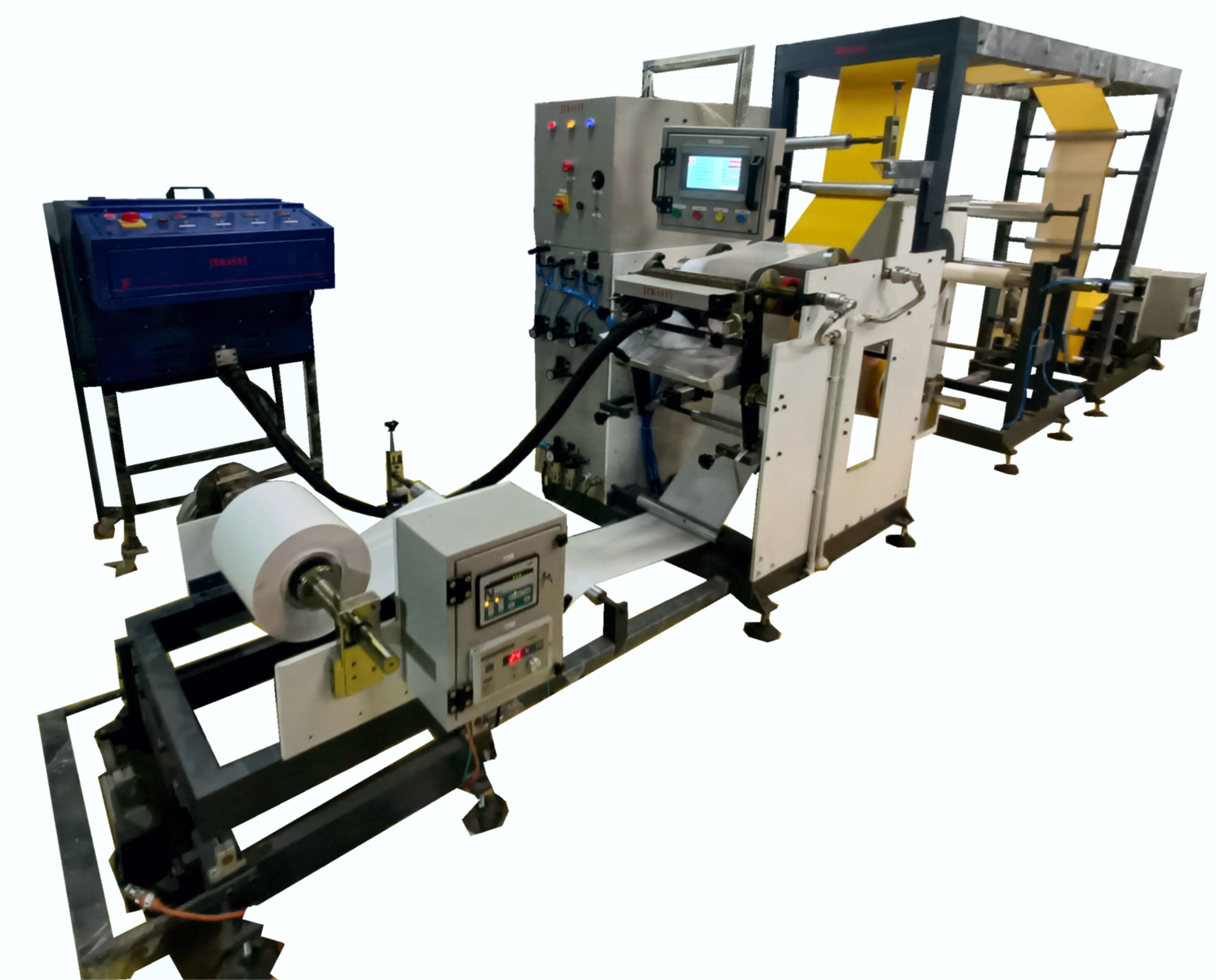

Insect Sticky Rolls and Traps Making Machine

Name: Insect Sticky Rolls and Traps Making Machine
Brand: Trasy
Price: 1770000 INR
Availability: InStock

Hot Melt Coating Machine by Trasy

Insect Sticky Rolls and Traps Making Machine

INR 1770000

In stock•cod not available

Phone Number

08048128665

Please keep 0 before dialling the number.

Email Address trasypranav@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address 10,11 Parmar Industrial Estate,

Mumbai, India, 400070

Description

Hot Melt Coater Specification: This machine will make rolls of 300mm (Max.) width & Max 600mm dia. Of 270 micron PVC with hot melt glue and silicon paper. Also can make 100m rolls of 80 micron LDPE coated with hot melt on 3” paper core. Machine Type: Die coating Max. Size of coating: 300mm, GSM: 15 to 60 Max. Speed of coating : Speed 0- 15 mpm M/c specifications: 1. Unwind : (2 Sets) To hold 310 mm max. width material. 600 mm Dia. Max. 76 MM core ID. Powder Brake Web Guide 2. Coating Station: Die coating. Accurate Temp. Control. All silicon rolls dynamic balanced. Back up roller Pneumatically operated 3. Lamination Nip: Dynamic balanced Metal roll & Silicone roll Operation & pressure Pneumatic Drive to the nip 4. Rewind : To hold 310 mm max. width material. 400 mm Dia. Max. 76 MM core ID. Tapper tension controlled winding. AC Drive for controlled winding. And Turret Winder for LDPE wrap winding. 5. Permelter: Tank capacity 12 Lit. Melting Capacity 12 Lit/hr liquid tank capacity 6 Lit. Pump Capacity 0.4 Lit/Min Accurate Temp. Control. Accurate flow control 6. Hot melt Hose: To Supply 0.4 Kgs/hr Length 2 m Accurate Temp. Control. 7. Dimensions: 7 m X 1.5 m X 1.5 m Total Electrical Load : Motors 6 HP, Heaters 5.1 KW
