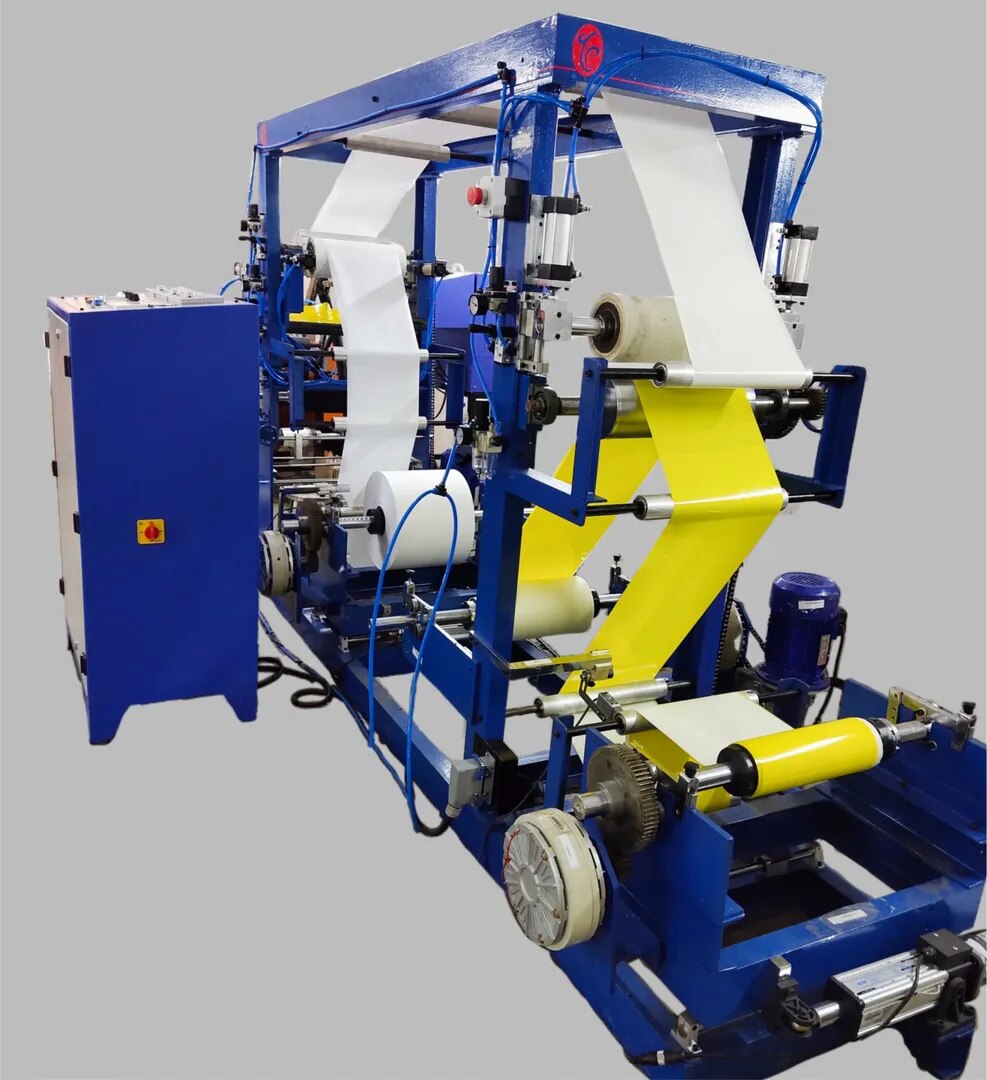

Hot Melt Coating Machine for Making Sticky Insect Trap & Indicators

Hot Melt Coater Specification:

This machine will make rolls of 325mm (Max.) width & max 600mm dia. with 20 gsm hot melt coating.

Machine Type: Die coating

Max. Size of coating: 300mm, GSM: 15 to 65 Max. Speed of coating : Speed 25 mpm @15 gsm

M/c specifications:

1. Unwind 1:

To hold 325 mm max. width material. (Si Paper)450 mm Dia. Max.

76 MM core ID.

Powder Brake

Web Guide

2. Unwind 2:

To hold 3325 mm width material. (PVC of 0.27mm)

450 mm Dia. Max.

76 MM core ID.

Powder Brake

Web Guide

3. Coating Station: Die coating.

Accurate Temp. Control.

All silicon rolls dynamic balanced.

Back up roller Pneumatically operated

4. Lamination Nip:

Dynamic balanced Metal roll & Silicone roll

Operation & pressure Pneumatic

Drive to the nip

With trim cut and blower for trim removal.

5. Rewind :

To hold 325 mm max. width material.

500 mm Dia. Max.

76 MM core ID.

Tapper tension controlled winding.

AC Drive for controlled winding.

6. Permelter:

Tank capacity 25 Lit.

Melting Capacity 15 Lit/hr

liquid tank capacity 15 Lit.

Pump Capacity 0.4 Lit/Min

Accurate Temp. Control.

Accurate flow control

7. Hot melt Hose

To Supply 0.4 Kgs/hr

Length 2 m

Accurate Temp. Control.

8. DIMENTIONS: 6 m X 2 m X 1.5 m

Total Electrical Load : Motors 11 KW

CUT TO LENGTH MACHINE FEATURES:

Maximum web width : 300 mm

Maximum Label Size : 10 mm to 24” in length

Speed : 100 PPM depending on size

Thickness of size : 400 micron

Electrical load : 1 HP.

WORKING DETAILS OF LABLE MAKING MACHINE:

UNWIND : Max. 300mm film width with brake.

CUTTING : Cutting is done by pneumatic knife with very simple procedure of blade setting.

PUNCHING: Pneumatic punching unit with X/Y axis movement to position the hole position.

DRIVE : Main drive with PMDC drive with thirstier control for step less speed variation.

PULLING DRIVE : AC servo motor driven by microprocessor based with pneumatic pinching rollers.

CONTROL PANEL : Key board for setting length of sheet. All settings & counting numbers are displayed on LCD display. The basic program runs on microprocessor.

COUNTERS: One integrator total production counter. Display of cuts per minute is also provided.
