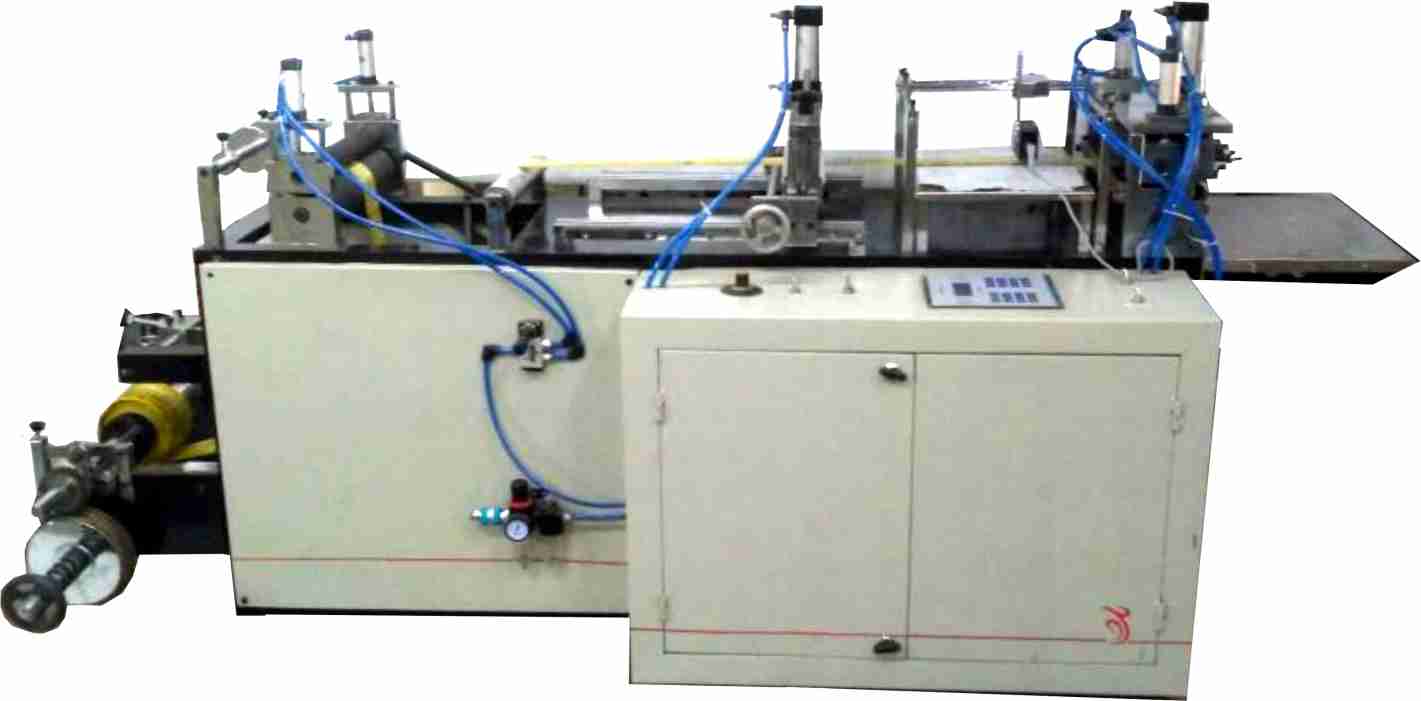

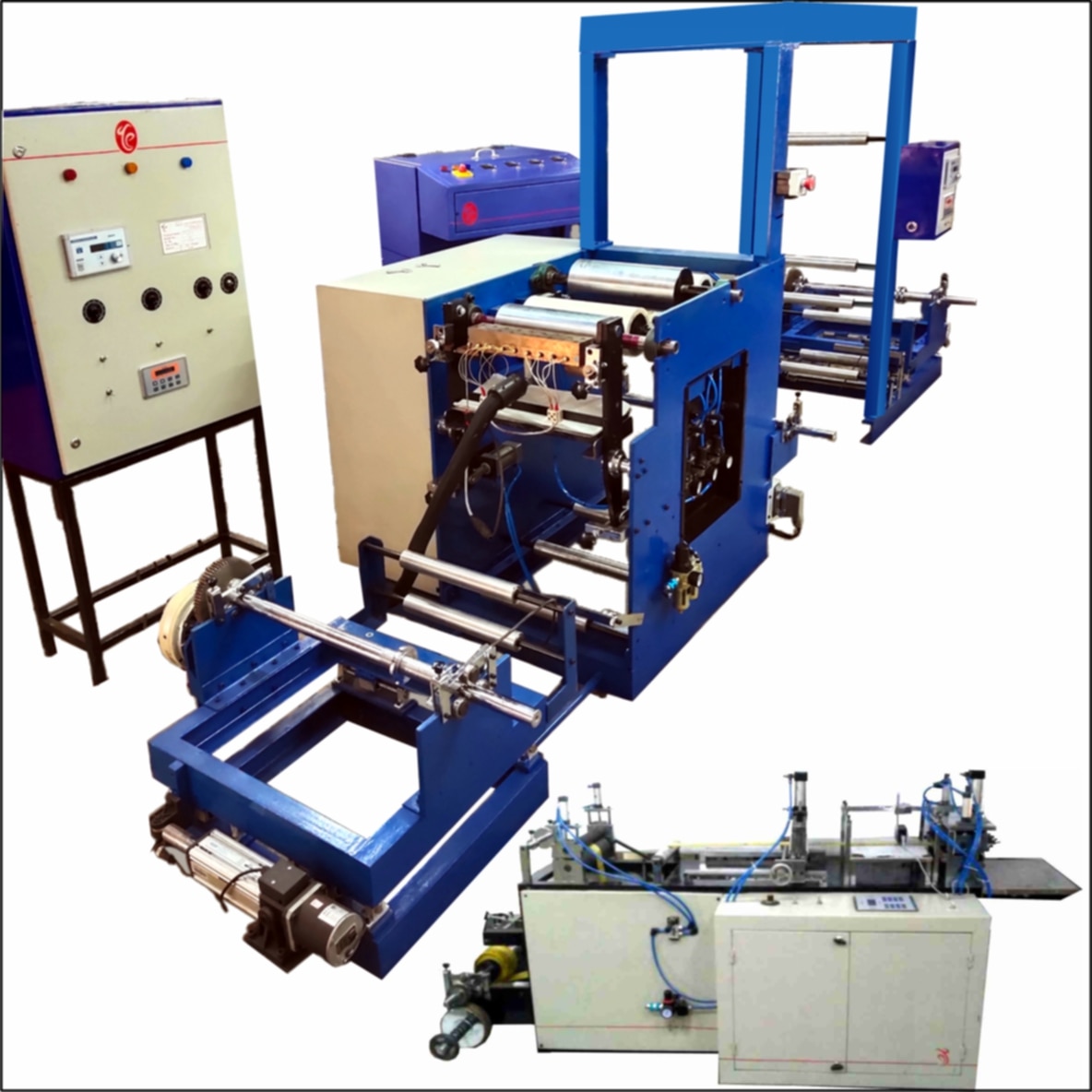

Yellow Sticky Cards Making Machines with Hot Melt Coating, Punching and Sheet Cutting

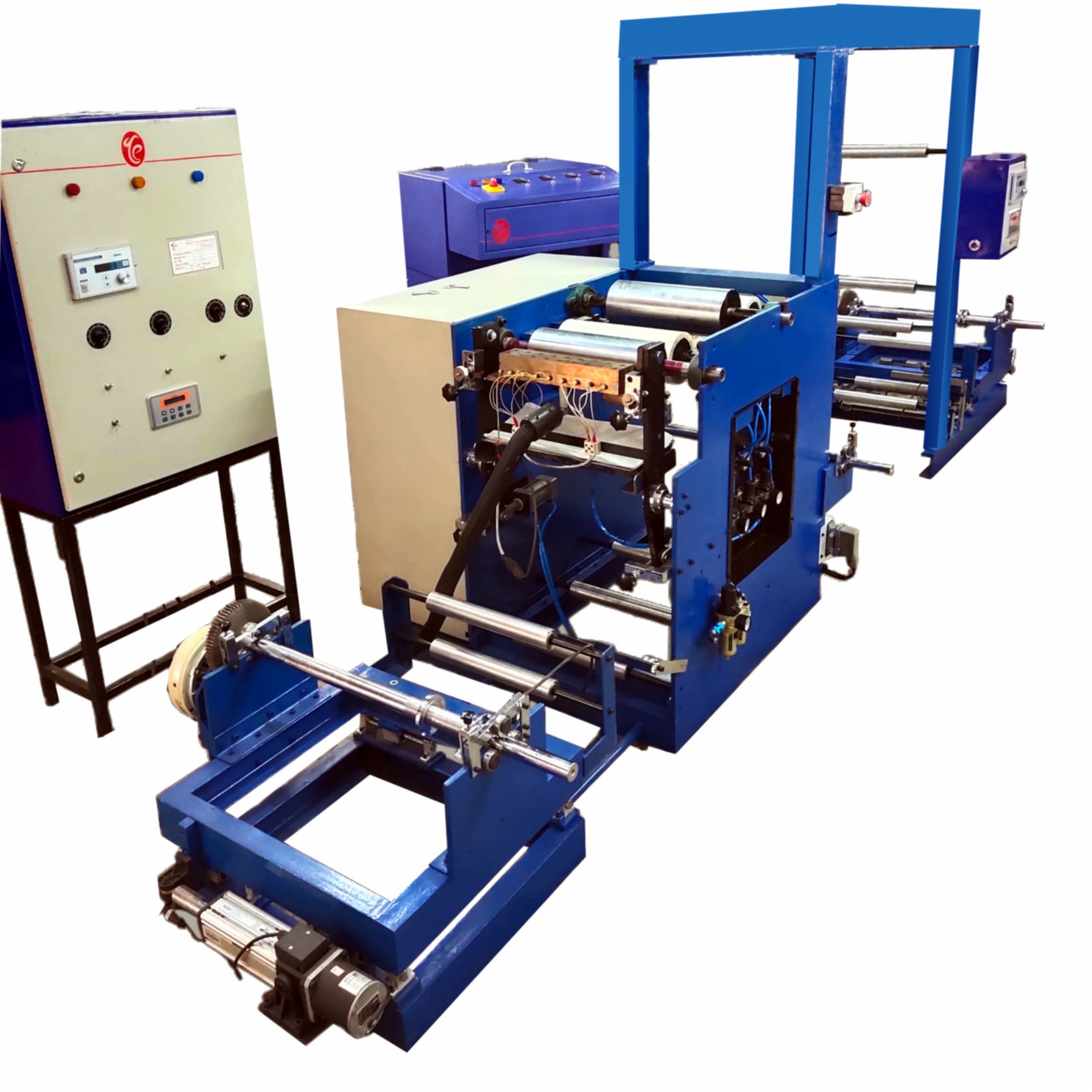

Hot Melt Coater Specification:

This machine will make rolls of 325mm (Max.) width & max 600mm dia. with 20 gsm hot melt coating.

Machine Type: Die coating

Max. Size of coating: 300mm, GSM: 15 to 65 Max. Speed of coating : Speed 25 mpm @15 gsm

M/c specifications:

Unwind 1:

To hold 325 mm max. width material. (Si Paper)450 mm Dia. Max.

76 MM core ID.

Powder Brake

Web Guide

Unwind 2:

To hold 325 mm width material. (PVC of 0.27mm)

450 mm Dia. Max.

76 MM core ID.

Powder Brake

Web Guide

Coating Station: Die coating.

Accurate Temp. Control.

All silicon rolls dynamic balanced.

Back up roller Pneumatically operated

Lamination Nip:

Dynamic balanced Metal roll & Silicone roll

Operation & pressure Pneumatic

Drive to the nip

With trim cut and blower for trim removal.

Rewind :

To hold 325 mm max. width material.

500 mm Dia. Max.

76 MM core ID.

Tapper tension controlled winding.

AC Drive for controlled winding.

Permelter:

Tank capacity 25 Lit.

Melting Capacity 15 Lit/hr

liquid tank capacity 15 Lit.

Pump Capacity 0.4 Lit/Min

Accurate Temp. Control.

Accurate flow control

Hot melt Hose

To Supply 0.4 Kgs/hr

Length 2 m

Accurate Temp. Control.

DIMENTIONS: 3 m X 1 m X 1.5 m

Total Electrical Load : Motors 5 HP, Heaters 7.5 KW
