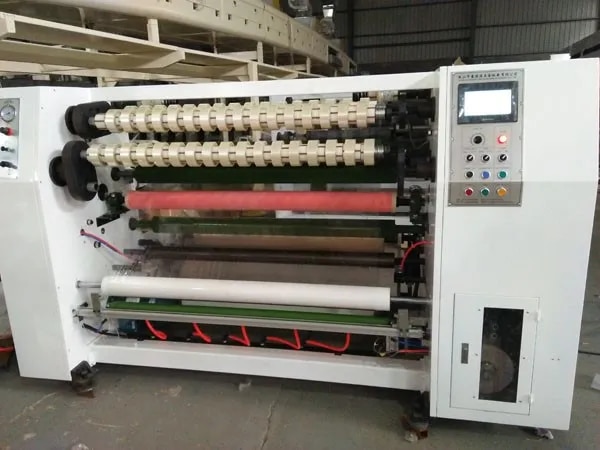

TE 111 BOPP adhesive tape slitting machine

Feature

1. Full-automatic four-shaft turret, 2 shafts rotating at a time and 2 shafts steady for change over. This ensure efficient working.

2. Stepless speed regulation of frequency conversion and three step length setting provided for smooth rewinding operation to ensure accurate rewinding length. It can automatically decelerate and stop when operating at speed.

3. The unwinding tension is adopted with pneumatic braking control. The rewinding tension is adopted with the dual control equipped with the clutch and the independent slide setting for free adjustment of the tensile force.

4. The banana roller is designed to eliminate tape wrinkling during feeding.

5. Staggered trim winding

6. Pneumatic brake for unwind unit.

Main Technical Parameters

Model TE 111-1300

Effective width 1320 mm

Max. unwind diameter 800mm

Min. slitting width 12mm

Max. rewind diameter(shaft3") exchange 4 shafts 150mm

Max. rewind diameter(shaft3") exchange 2 shafts 300mm

Machine speed 0-180m/min

Slitting blade 0.2×22×60mm

Main power 5.5KW

TE 201 Paper core loading and unloading machine

Description

Suitable for loading and unloading paper cores together with tape slitting machine.

Feature

1. Suitable for auto unloading finished tapes and auto loading paper cores.

2. With easy operation, the operator only needs to put the paper cores into loading door and then press the button for swift loading paper cores.

3. Pneumatic operation control is adopted to ensure high efficiency.

Technical Parameters

Model 1300mm

1300mm

3''

5kg/cm2

Working width

Paper core diameter

Working air pressure

Moulds of 1 sizes included 48 mm, Extra sizes Rs. 20000/- per size.

TE 203 Mini doctor rewinding machine

Description

Features

1. This unit is designed for rewinding of unqualified finished tape.

2. DC-motor driven rewinding shaft provides speed control.

3. A meter on the control panel allows tape rewinding length to be conveniently preset.

4. Weight 100Kg

5. Machine dimension(L*W*H) 65cm*77cm*61cm

Parameters

Maximum rewinding diameter Φ300mm

Maximum rewinding width 100mm

Paper core inside diameter Φ76.2mm

Rewinding speed 0-100M/Min

TE 202 Paper core cutting machine

Description

Feature

1. It adopts circular blade cutting with cylinder auto knife feeding and auto unloading

2. Cylinder movement is controlled by the valve and equipped with precise aluminum mould to ensure efficiency and quality

Main Technical Parameters

max. cutting width 500mm

min. cutting width 12mm

I.D. of paper core 3''

paper core thickness 3-5mm

air pressure 5kg/cm2

Watch Machine in working:

https://youtu.be/9Hnn2bp4ZyA
