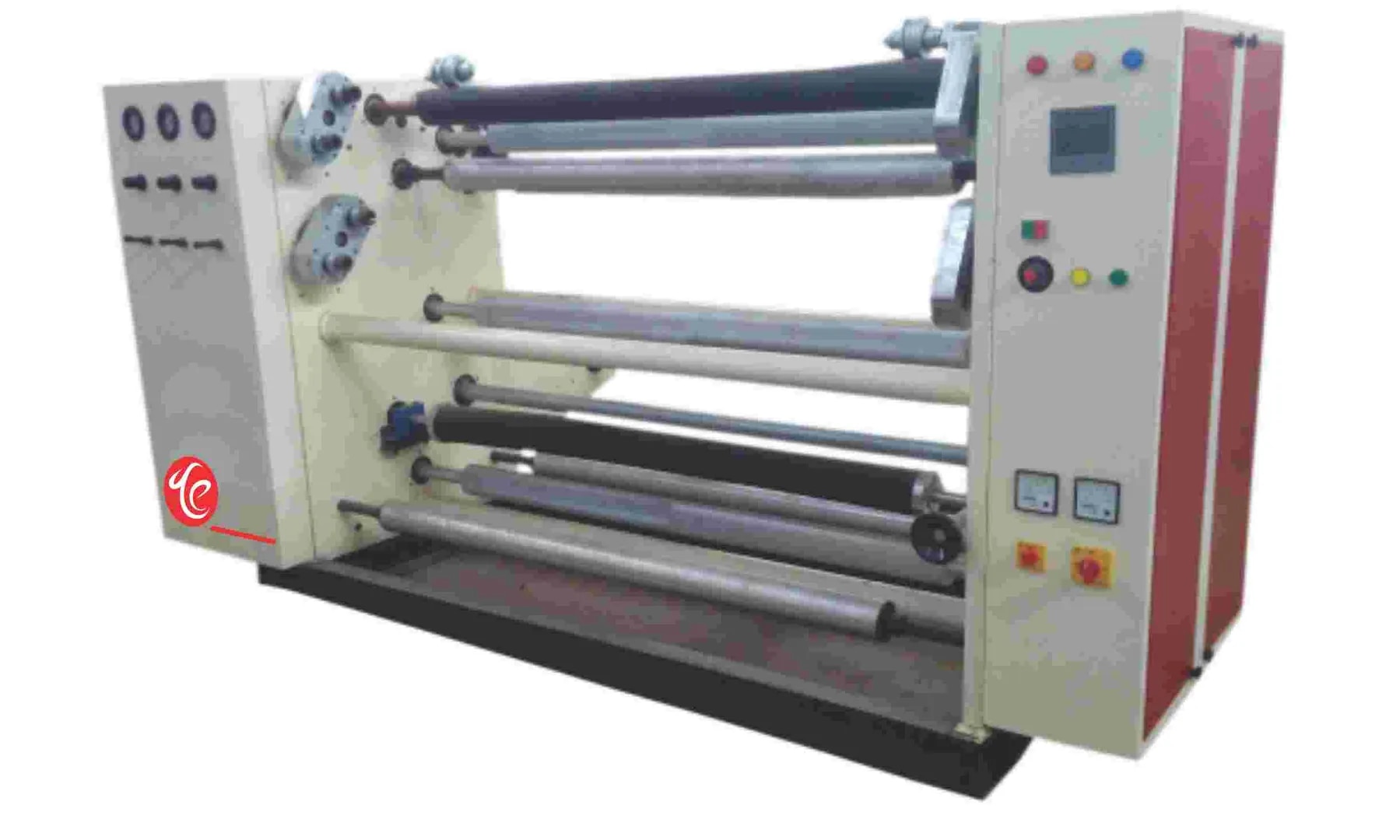

Adhesive Tape Slitting Machines Set TE 111

This set has Production speed for making roll size 48mm X 65m , from jumbo roll of length 4000m; Converting Time is 50 Min. Resulting in 26 boxes /hr.

Feature

1. Full-automatic four-shaft turret, 2 shafts rotating at a time and 2 shafts steady for change over.

2. Stepless speed regulation of frequency conversion and three-step length setting provide smooth rewinding operation to ensure accurate rewinding length. It can automatically decelerate and stall when operating at high speed.

3. The unwinding is with Mag. Powder brake. The rewinding tension is adopted with the dual Mag. Powder clutch.

4. The curved stretch roller is designed to eliminate tape wrinkling during extension and feeding.

5. Staggered Trim Winding

6. (Optional) Auto labeling and slitting stationery tape functions.

Main Technical Parameters

model TE 111-1300 TE111-1600

Effective width 1320 mm 1620 mm

max. unwind diameter 800mm 800mm

min. slitting width 12mm 12mm

max. rewind diameter(shaft1") exchange 4 shafts 75mm 75mm

max. rewind diameter(shaft3") exchange 4 shafts 150mm 150mm

max. rewind diameter(shaft3") exchange 2 shafts 300mm 300mm

machine speed 0-180m/min

slitting blade 0.2×22×60mm

main power 5.5KW

Please visit following YouTube links to watch the machine in working::

https://youtu.be/9Hnn2bp4ZyA
