No scratch Hot Melt Coating Machine

Applied range

WHT350 Hot Melt Coating Machine is suitable for making packing tape, paper tape, Adhesive sticker, self-adhesive paper and so on.

Main characteristic

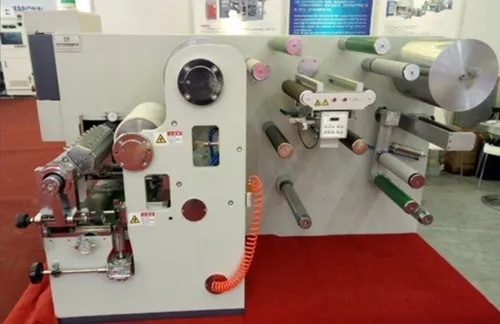

WHT350 Hot Melt Coating machine adopts PLC and touch screen to operate and can coat the material up to a width of 350mm. The two laminating rollers can be separated and it is easy to clean and adjust.

The machine adopts two cooling rollers to make sure the material can be protected well from the high temperature

Technical parameter

1. Coating method: rotary rod Coating system without scratch

2. Max available coating width: 350mm.

3. Coating Weight: 13-80gsm

4. Equality level: ±0.001mm

5. Max. working speed: 150m/min

6. Length of all roller: 400mm

7. Unwinding equipment: 2 set

8. Rewinding equipment: 1 set

9. Unwinding Diameter: 600mm

10. Rewinding Diameter: 700mm

11. Correction Edge Device: 2 sets

12. Glue melting speed: 30kg/h (EVA: 3000 centipoise 165℃)

13. Max temperature of adhesive melter: 210℃

14. Glue hose: 2m

15. Power: app. 15KW

Power supply: ~440V±15% 50Hz
