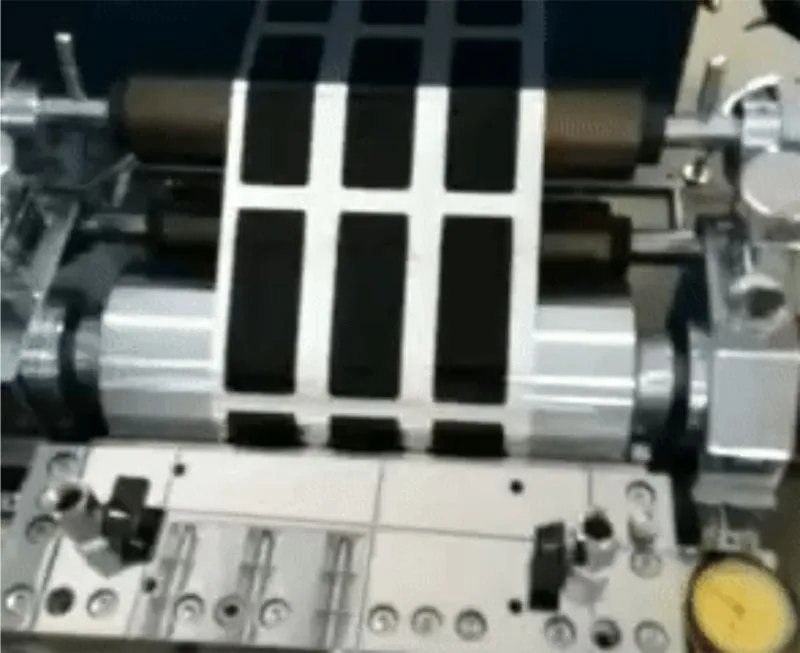

Hot melt intermittent Coating Machines HMC 6 IC

Hot Melt Coater Specification: HMC 6 IC

Machine Type: Die Coating

Max. Size of coating : 150mm,

GSM: 30 to 200,

Max. Speed of coating : Speed max. 5 mpm at 55 GSM.

For higher GSM the max. speed will decrease,

The max. melting capacity is 4 kg /hr. of this set.

M/c specifications:

1. Unwind: 2 station

To hold 165 mm max. width paper.

76 MM core ID.

Magnetic powder Brake

Web Guide

2. Coating Station:

Slot Die coating

Accurate Temp. Control.

All silicon rolls dynamic balanced.

Back up roller Pneumatically operated.

Rotary Joints provided to backup rolls. (Chiller, water pump in your scope.)

AC Drive for coating roller.

3. Lamination Nip:

Dynamic balanced Metal roll, Silicone roll

Operation & pressure Pneumatic

Rotary Joints provided to the rolls. (Chiller, water pump in your scope.)

4. Cutting Unit: 1 Station

Fixed size cutting with rotary / shear blades.

Cut size 7” length.

AC motor Drive for cutting.

Controller by PLC and operated with HMI.

5. Permelter:

Tank capacity 5 Lit.

Melting Capacity 4 Lit/hr

Dry tank capacity: 5 Lit.

liquid tank capacity 0.5 Lit.

Pump Capacity 0.5 Lit/Min

Accurate Temp. Control.

6. Hot melt Hose

To Supply 5 Kgs/hr

Length 1 m

Accurate Temp. Control.

DIMENTIONS: 5m x 1.5m x 1.5m

Total Electrical Load: 7.5 KW

Click the link to see the machine in working: https://youtu.be/0grdcxjecXE
