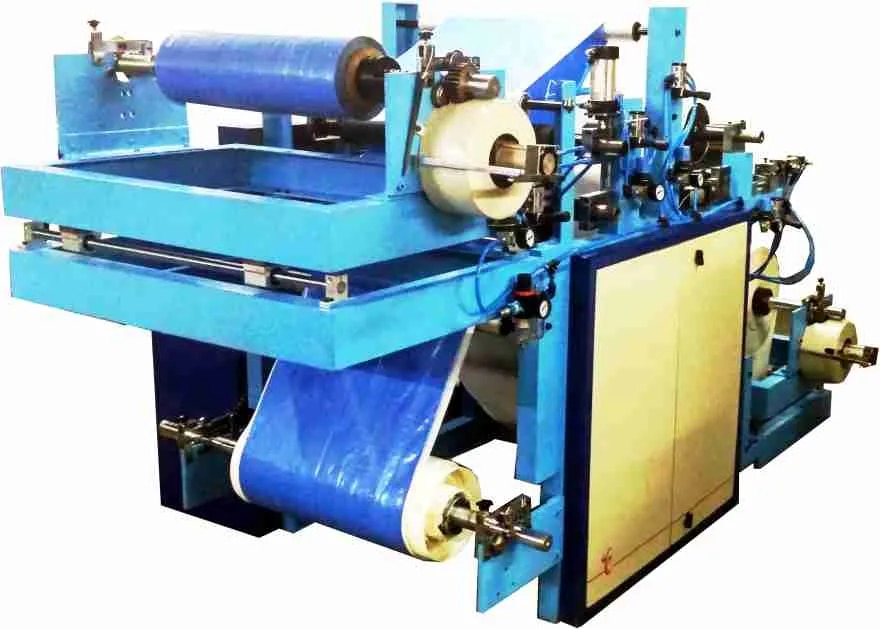

Hot Melt Coating Machine Slot die HMC 20

Hot Melt Coating Machine Specification:

HMC-20 Hot Melt Coating Machine is suitable for producing adhesive sticker, label paper, medical tapes, double-side adhesive tapes, cloth tapes, double-side foam adhesive tape, clean adhesive tape, craft paper tape, Aluminium foil tapes, fabric tapes, shoes materials and etc. of 510mm width & 600mm dia. with 15 gsm to 80 gsm hot melt coating.

Process

1. Silicon paper of 510mm will be coated with hot melt.

2. Lamination (transfer of HM on Paper) of Si paper & Paper in roll form.

3. Winding of Si paper & Paper in roll.

Machine Type: Die coating

Max. Size of coating: 510mm, GSM: 15 to 55 Max. Speed of coating: Speed 25 mpm

M/c specifications:

1. Unwind 1:

To hold 510 mm width material.

600 mm Dia. Max.

76 MM core ID.

Mechanical Brake

Web aligner

2. Coating Station: Die coating.

Accurate Temp. Control.

All silicon rolls (back up) dynamic balanced. With cold water circulation piping.

Back up roller Pneumatic operated.

3. Unwind 2:

To hold 510 mm width material.

500 mm Dia. Max.

76 MM core ID.

Mechanical Brake

Web aligner

4. Lamination Nip:

Dynamic balanced Metal roll & Silicone roll

Operation & pressure Pneumatic

AC Drive to the nip

5. Rewind : for Label Stock

Centre winding system

To hold 510mm width material.

500 mm Dia. Max.

76 MM core ID.

Tapper tension controlled winding.

AC Drive for controlled winding.

6. Permelter:

Tank capacity 15 Lit.

Melting Capacity 15 Lit/hr

Pump Capacity 0.4 Lit/Min

Accurate Temp. Control.

Accurate flow control

7. Hot melt Hose

To Supply 0.4 Kgs/hr

Length 2 m

Accurate Temp. Control.

8. DIMENTIONS: 3m X 2m X1.5m

9. Total Electrical Load : 12.5 KW

watch this link to watch the machine in running: https://youtu.be/a4xnjHp-zvY
