Hot Melt Coating Machine REVERSE ROLL type

Model: HMC REVERSE ROLL COATING

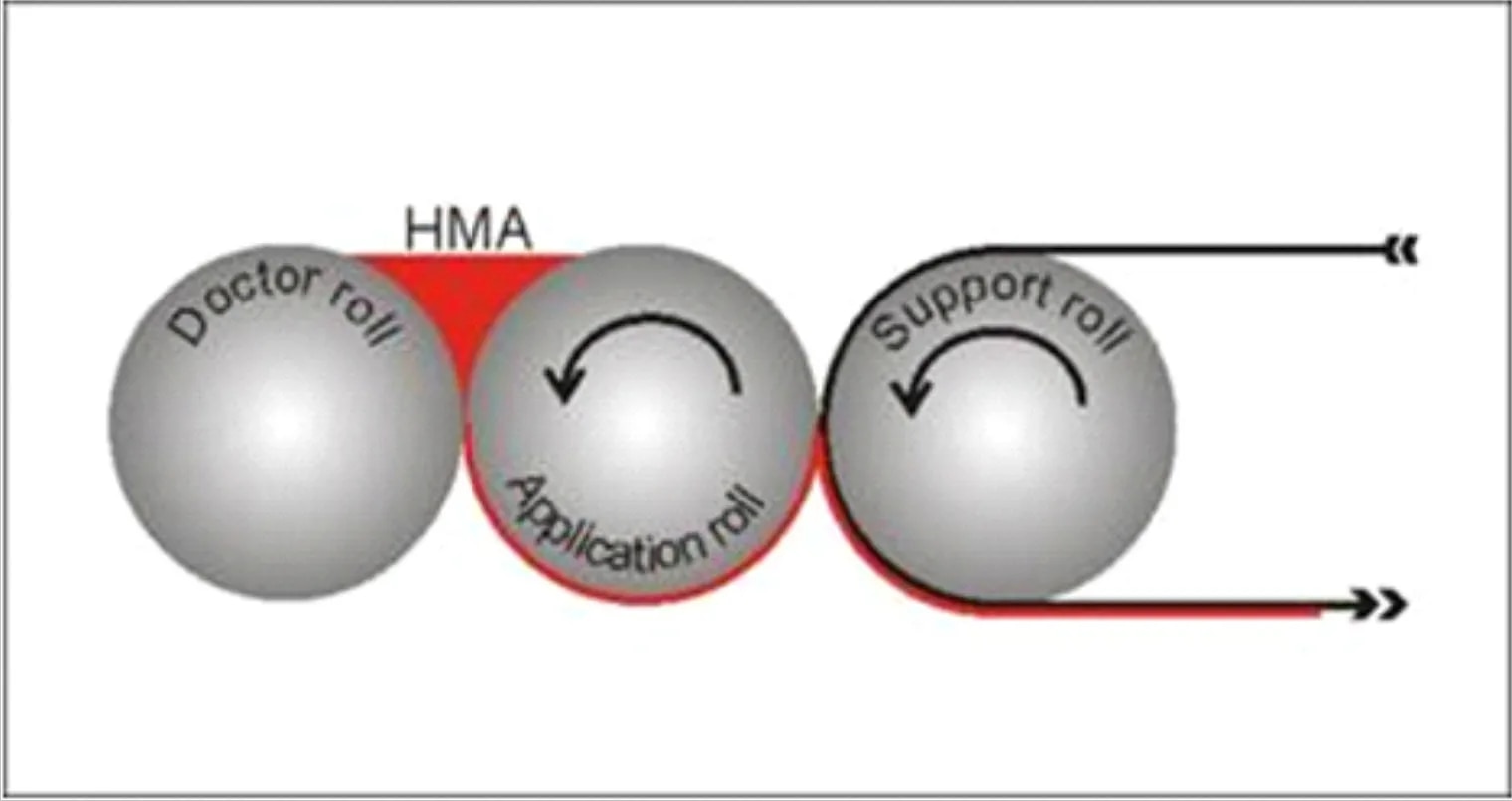

In this type of coating procedure, the coating material is measured onto the applicator roller by precision setting of the gap between the upper metering roller and the application roller. The coating is 'wiped' off the application roller by the substrate as it passes around the support roller at the bottom. The diagram illustrates a 3-roll reverse roll coating process.

Trasy Enterprises has developed a hot melt coating machine on this principle. The absence of solvents, volatile parts and water, offers an environmentally friendly operating process, and since no additional heating energy is required to evaporate water or solvent and the curing takes place by ambient air temperature or by the humidity of the ambient air, no drying or curing ovens are necessary.

Application Range: Tapes, Laminates of Film, Fabric, Textile, Paper...etc.

Coating width: 100-1000mm

Coating weight: 20- 100 g/m2

Coating speed: 10 m/min max.

Unwind device: 2sets

Unwind Diameter: 500 mm

Correction device: 2set

Rewind Diameter: 500mm

Max temperature: 200℃

Length of machine: 3400mm

Height of machine: 1850mm
