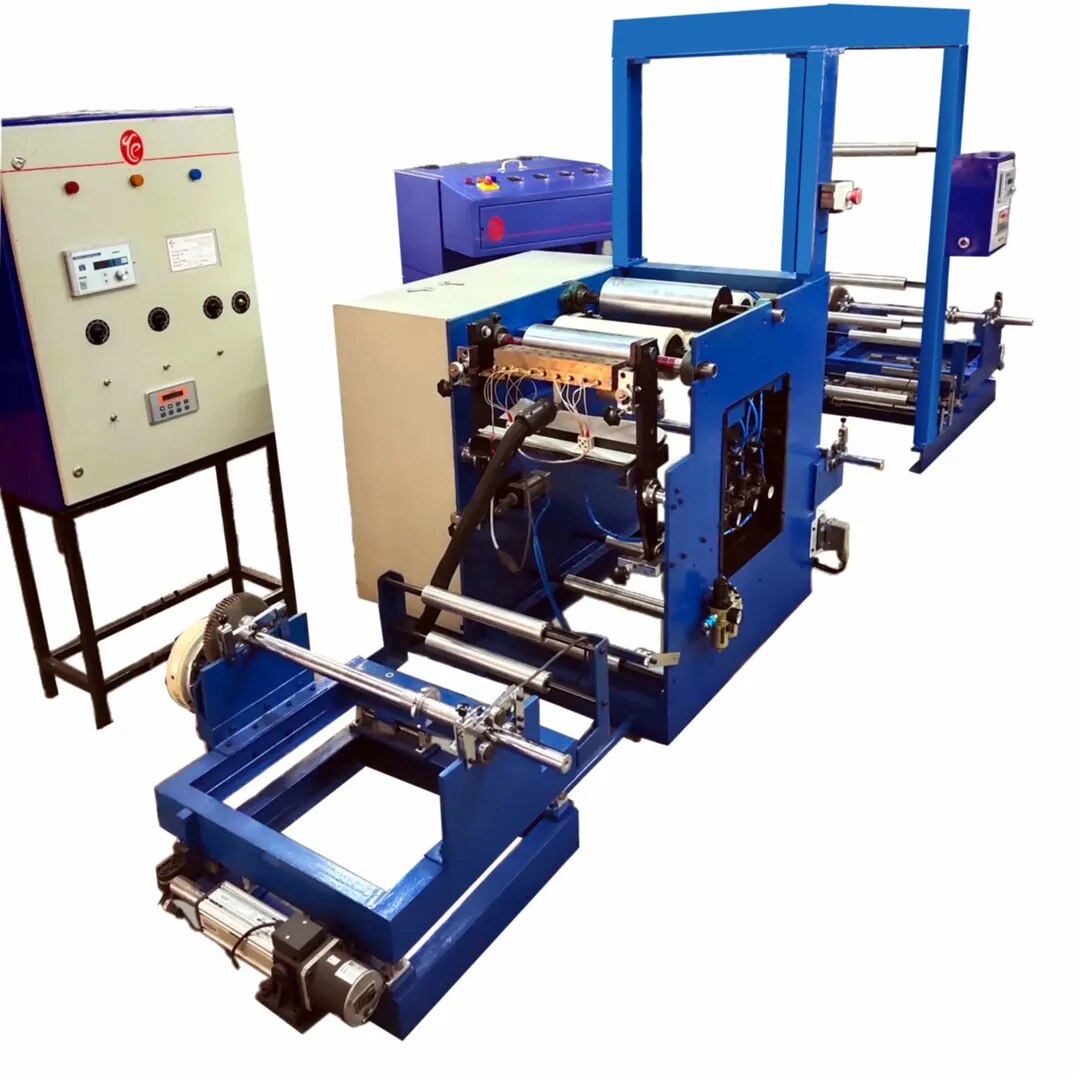

Hot Melt Coating Automatic Machine HMC20PLC

Hot Melt Coating Machine Specification:

HMC-20 Hot Melt Coating Machine is suitable for producing adhesive sticker, label paper, medical tapes, double-side adhesive tapes, cloth tapes, double-side foam adhesive tape, clean adhesive tape, craft paper tape, Aluminum foil tapes, fabric tapes, shoes materials and etc. of 510mm width & 600mm dia. with 15 gsm to 40 gsm hot melt coating.

Process

1. Silicon paper of max. 510mm will be coated with hot melt.

2. Lamination (transfer of HM on Paper) of Si paper & Paper in roll form.

3. Winding of Si paper & Paper in roll.

Machine Type: Die coating

Max. Size of coating: 520mm, GSM: 15 to 100 Max. Speed of coating: Speed 25 mpm @ 20 gsm.

M/c specifications:

1. Unwind 1:

To hold 510 mm width material.

600 mm Dia. Max.

76 MM core ID.

Magnetic Powder Brake

Web aligner

2. Coating Station: Die coating.

Accurate Temp. Control.

All silicon rolls dynamic balanced.

Back up roller Pneumatic operated.

3. Unwind 2:

To hold 510 mm width material.

500 mm Dia. Max.

76 MM core ID.

Magnetic Powder Brake

Web aligner

4. Lamination Nip:

Dynamic balanced Metal roll & Silicone roll

Operation & pressure Pneumatic

Clutch Drive to the nip

5. Rewind :

Center winding system

To hold 510mm width material.

600 mm Dia. Max.

76 MM core ID.

Tapper tension controlled winding.

Magnetic Powder Clutch for controlled winding.

6. Permelter:

Tank capacity 30 Lit.

Melting Capacity 30 Lit/hr

Pump Capacity 0.4 Lit/Min

Accurate Temp. Control.

Accurate flow control

7. Hot melt Hose

To Supply 0.4 Kgs/hr

Length 2 m

Accurate Temp. Control.

8. DIMENTIONS: 7m X 2m X1.5m

9. Total Electrical Load : 15 KW

Click the link to see machine in working: https://youtu.be/R-Ddqvwhig4
