Hot Melt Adhesive Disc Applicator for shrink-label centre gluing machines

Attachment for Shrink Label Center / Seaming Machines

________________________________________

Product Overview

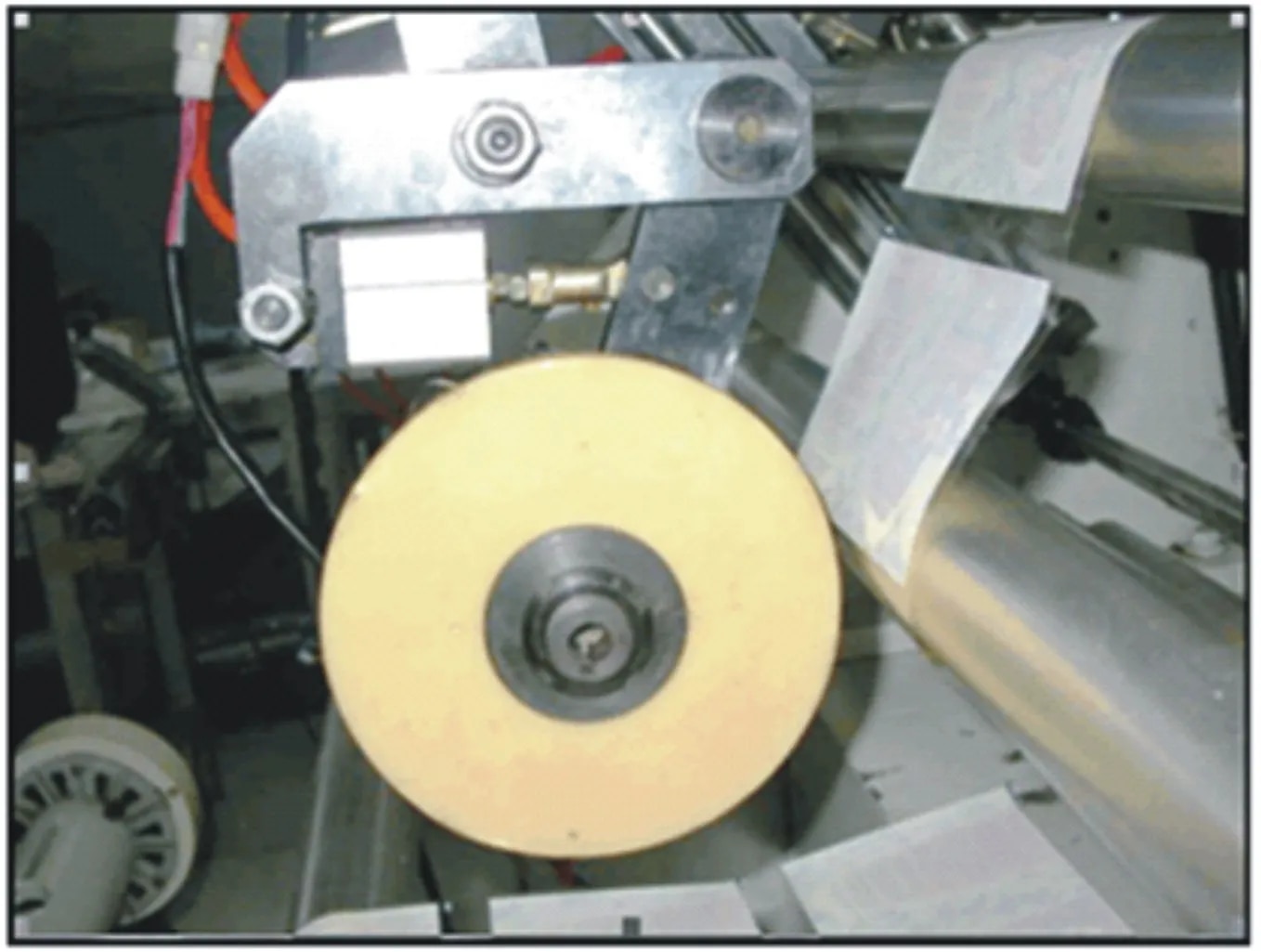

The Trasy HMA Disc Applicator is a retrofit device for shrink-label center/seaming machines. It applies controlled hot-melt adhesive (HMA) lines on the inner surface of PVC shrink films before center-sealing. Adhesive is applied in ultra-thin layers (10–15 µm) without external heating — frictional softening at the rotating disc ensures no premature shrinkage of the film. During shrink-tunnel processing, the HMA melts and bonds the label securely to the container, preventing slippage on conical shapes.

________________________________________

Key Features

• Retrofit design — fits most shrink-label center/seaming machines

• Single / double / triple disc option → 1, 2 or 3 adhesive lines

• Ultra-thin glue lines: 10–15 µm

• No external heating of PVC film

• Adjustable line spacing & position

• Closed-loop motor control for stable RPM

• Simple disc replacement & low maintenance

________________________________________

Adhesive Specification

• Base: Ethylene Vinyl Acetate (EVA) Copolymer

• Colour: Brownish Yellow

• Viscosity: 275–600 cP @ 150 °C

• Softening Point: 65–75 °C

• Density: 0.99 ± 0.03 g/cm³ @ 30 °C

________________________________________

Operating Parameters

• Disc Diameter: 30–70 mm (replaceable)

• Disc Speed: 200–2,000 RPM (adjustable)

• Linear Contact Speed: 1.0–3.0 m/s

• Contact Force: 5–30 N (adjustable)

• Label Web Speed: Up to 60 m/min (customizable)

• Line Thickness: 10–15 µm (typical)

________________________________________

System Components

• HMA disc cartridge (1 / 2 / 3 disc version)

• BLDC motor with closed-loop drive & encoder

• Pneumatic or servo pressure actuator

• Web encoder / photo-eye synchronization

• Safety guarding & thermal cut-off protection

• Optional disc magazine for continuous production

________________________________________

Installation & Integration

• Mounts upstream of center-seaming station

• Syncs with existing label web encoder

• Adjustable guides for accurate glue line placement

• Quick setup via HMI recipe presets

________________________________________

Benefits

✔ Prevents sleeve slippage on conical containers

✔ No premature shrinkage of film

✔ Minimal adhesive usage (thin, precise lines)

✔ Retrofittable on existing lines

✔ Low-maintenance and operator friendly

________________________________________

Applications

• PVC shrink sleeves & labels

• Beverage, cosmetics, pharma & food packaging

• Conical & non-standard container shapes
