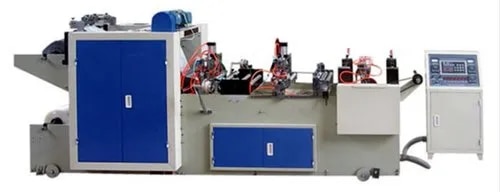

This machine is specially used for making medical pouch and reel from two-layer material:
(1)medical grade paper and compound film or
(2) paper and paper medical bags.
Making it seal through heating mould ,collected at the rewinding device after cut by the slitting blade.
It is an ideal equipment used for making sterilization package, like reel and self adhesive pouch which has wide application in medical industry.
Product Types:
(1) flat open type pouch
(2) flat type reels
(3) gusset type pouches
(4) gusset type reels
(5) self-stand pouches, etc.
Features:
1) Speed of the feed of machine is adjusted by frequency conversion
2) Double working position level material feeding
3) Material tension is automatically controlled through magnetic powder brakes
4) Adopts high-accuracy servo motor, subdivision driver make the material been pulled more stable, accuracy and fast.
5) Minicomputer control system to preset the length of pouch, length measurement display and automatic stop function when reaching the set length.
6) Easy convert of machine between making pouch and reel .
Note:
You can supply the mould or ask us to made the mould for you.
The bag shape will be different since different mould.
Optional:
# Perforation line device ( dotted line )
# Hole puncher when you need punch hole on the pouch
# Side gusset device when make GUSSETTED REELS
Please visit following YouTube links to watch the machine in working:
https://youtube.com/playlist?list=PLU2rmQG27E_yNbXHf2LJN5gWjlEd_9kFw
