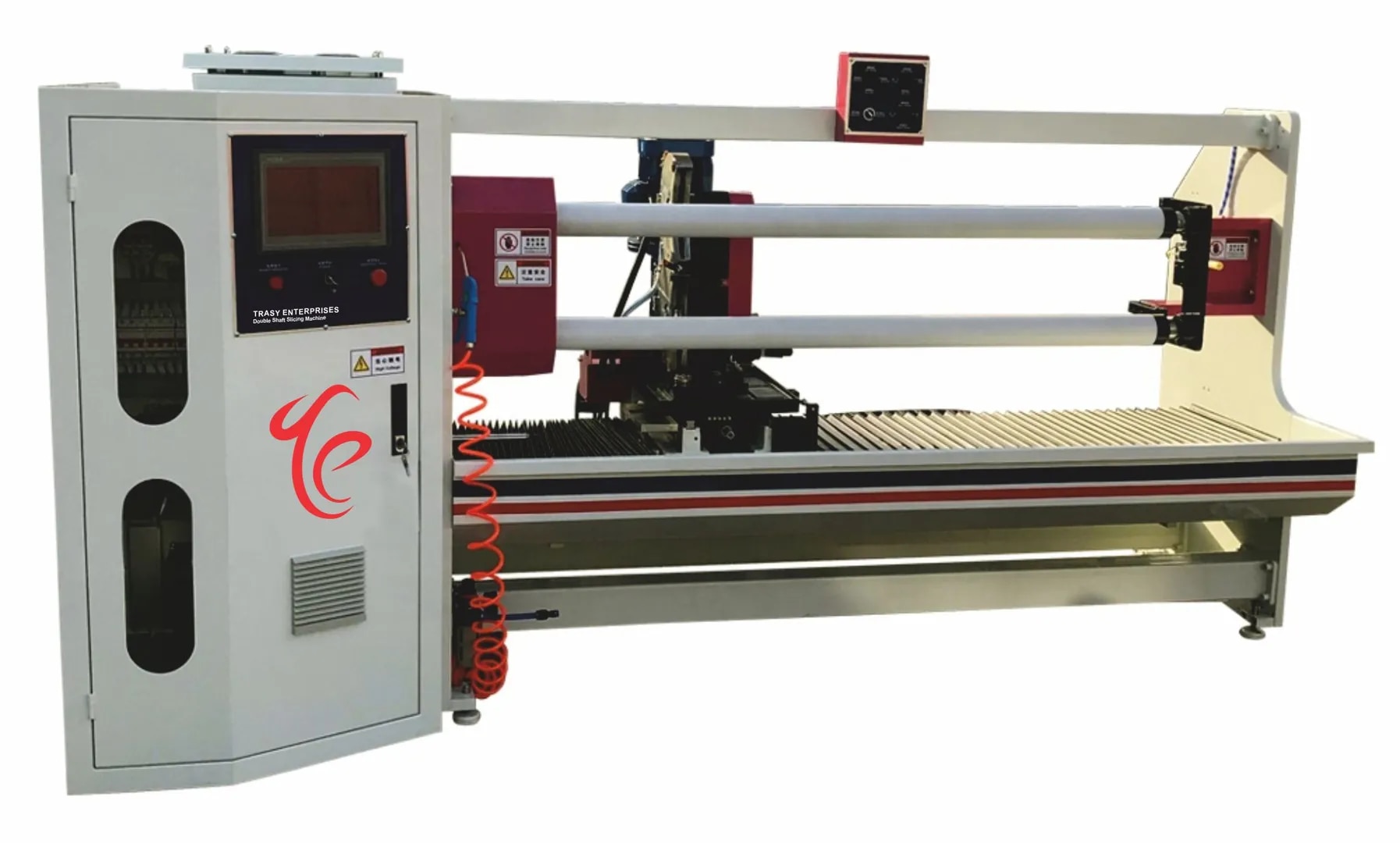

Double Shaft PVC Tape Cutting Machine

The most cost effective machine is Double Shaft PVC Tape Cutting Machine, in the range of all cutting / slicing machines. The log rolls are generally, in 1300mm length, and core diameter is 40 or 30 mm. The shaft size is week compared to the length of the shaft. It bends with the cutting pressure applied on it while cutting PVC tapes. We provide back up rolls with a moving carriage to the shaft so the shaft does not bend and the PVC tape cutting is of high quality.

This an automatic machine and production capacity is 3 sec for 1 cut, you cut total 40 rolls per min. so we recommend the double shaft PVC Tape Cutting Machine.

The most cost effective machine is Double Shaft PVC Tape Cutting Machine, in the range of all cutting / slicing machines. The log rolls are generally, in 1300mm length, and core diameter is 40 or 30 mm. The shaft size is week compared to the length of the shaft. It bends with the cutting pressure applied on it while cutting PVC tapes. We provide back up rolls with a moving carriage to the shaft so the shaft does not bend and the PVC tape cutting is of high quality.

This an automatic machine and production capacity is 3 sec for 1 cut, you cut total 40 rolls per min. so we recommend the double shaft PVC Tape Cutting Machine.

EFFECTIVE WIDTH 1350MM

CUTTING WIDTH 3-1300MM

PAPER CORE I.D: 40MM

MAX CUTTING DIAMETER: 160MM

POWER: 415V

AIR SOURCE 5KG(PREPARE BY USER)

Please visit following YouTube links to watch the machine in working:

https://youtu.be/I9QUOLp3JVQ
