Hot Melt Coating Machine by Xuteng

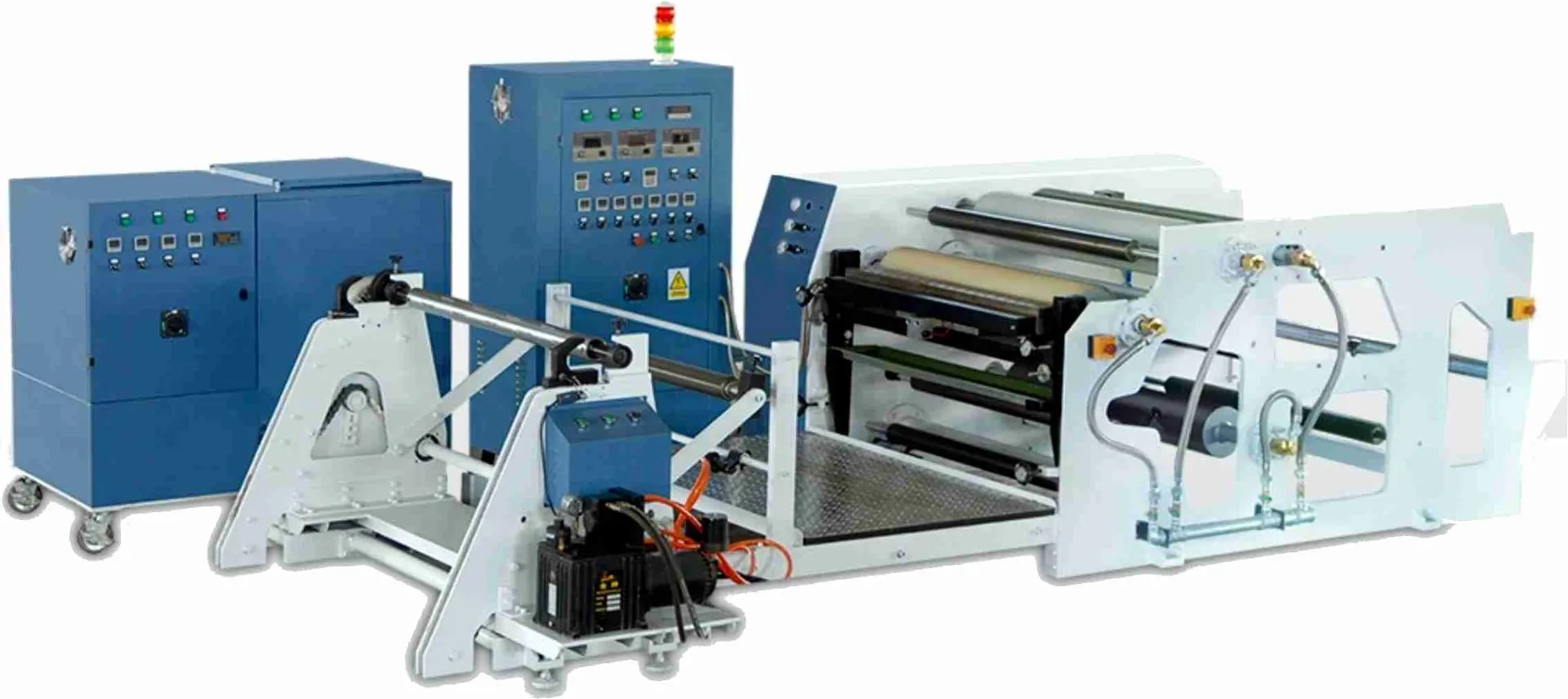

Hot Melt Dot Coating Machine

INR 8260000 In Stock
COD not available

Description

Product details

A. Applied range: DRT1100 Hot Melt Coating Machine Suitable for fabric compound production。 B. Technical parameters: 1. Coating method: Carving roll transfer coating (hot melt glue is coated on rollers with dot, then transferred to material) 2. Max. available coating width: 1300mm 3. Coating quality: 10-50g/m2(The amount of glue applied depends on the carving state of the carving roll.) 4. Max. line speed: 50m/min 5. Length of all roller surface: 1400mm 6. Max. rewinding diameter:600-800 mm (depends on your coating weight) 7. Max. unwinding diameter: 1000mm 8. Unwinding equipment: 2 set 9. Rewinding equipment: 1 set 10. RP120 hot melt sprayer: 1 set , 11. Melt glue speed: 120kg/h (EVA.3000 centipoise 165℃) 12. Length of glue-carrying pipe: 4m (1 piece) 13. Temperature: 230℃ 14. Power: app. 40KW 15. Power supply: ~415V±15% 50Hz 16. The quantity of glue can be adjusted independently or synchronously with the main machine 17. Oil temperature heater 24KW 1set C. Main working parts a) Machine rack 1. The first, second unwinding stand is made of square steel, U steel and steel plate. 2. The machine rack is made of 25mm steel plate, supported by steel tube. 3. The transmission part cover is made of 1.5mm steel plate. b) First and second unwinding part 1. Adopt single mechanism unwinding design 2. Magnetic powder brake for unwinding: 100N·M; 2 set (WREZUN Taiwan) 3. Tension control system is Automatic tension control system, 2 set (Ruian Zhongxing) 4. Unwinding shaft: 3″ air shaft; 2 pieces. 5. First unwinding can lift electrically, adopts one set of photoelectric EPC edge position system (Bianfu China),the second unwinding is use semi-auto control. c) Rewinding part 1. Adopt double mechanism unwinding design 2. Magnetic powder brake for unwinding: 100N·M; 1set (WREZUN Taiwan) 3. Manual tension control equipment: 1 set (KRD taiwan) 4. Manual deviation correcting equipment: 1 set 5. Rewinding shaft: 3″ air shaft; 1 pieces 6. Rewinding length can be controlled automatically or manually d) Glue melt tank(RP120) 1. The shell is made of U steel, square steel and 1.2mm steel plate. 2. Use aluminum alloy to build. Two-layer (upper and lower) structure. There is adhibition preventing coat on the inside surface. 3. Adopt high-temperature-resistant high-precision gear glue pump 4. Adopt external precise filter. 5. The glue pump speed is controlled by gear motor 6. Adopt high precision filter which is set outside 7. Temperature of each layer is controlled by PID system independently 8. Max. temperature is 210℃ 9. Melt glue speed: 180kg/h(EVA.3000 centipoise 165℃) 10. Heating power: app. 25KW e) Coating, laminating & roller part 1. Coating head: Carving roll transfer coating (hot melt glue is coated on rollers with dots, then transferred to raw material) 2. carving roller: ¢ 215mm silicon rubber roller with 2 rotary connector (Customized Coating Quantity Provided by Customers) 3. Cooling roller: ¢215mm chromed steel roller with 2 rotary connector 4. Laminating roller: ¢215mm silicon rubber roller with 2 rotary connector 5. Expandable roller:2pcs(silicon) 6. Guide roller: ¢80mm aluminum roller, surface anodic protection 7. Coating roller bearing: NSK, Japan a) Transmission part 1. Main motor: 4KW 1 set (Anhui Wannan) 2. Coating roller motor:2.2kW 1set (Taiwan CPG motor) 3. Glue pump motor: 2.2KW 1 set (Taiwan CPG motor) 4. Unwinding lift motor: 1.5KW 1set each stand 5. Main machine use belt, chain, and gear to transmit b) Pneumatic control part 1. Cylinder on coating head: ¢63mm 2 pieces 2. Cylinder on laminating press roller: ¢100mm 2 pieces c) Electric part 1. Main machine transducer: 3.7 KW; 1 piece (Inovance china) 2. Coating roller motor transducer: 2.2KW; 1 piece (Inovance china) 3. Glue tank transducer: 2.2KW; 1 piece (Inovance china) 4. Temperature controller: digital PID (telta Taiwan) 5. Heater (coating head): 8KW 6. Touch screen: 10” 1set (weinview Taiwan) 7. PLC: 1 set (Inovance china) 8. Knob switch: several pcs Schneider, France 9. Oil temperature heater 24KW 1set Watch: https://youtube.com/shorts/vZxeJ1MBu3Y?si=rQK2uyN_nArWqUZi
