Home Products ANTI SLIP HOT MELT ADHESIVE APPLICATOR
This hot melt glue w
This hot melt glue w
Heat Shrink PVC Labels Machines

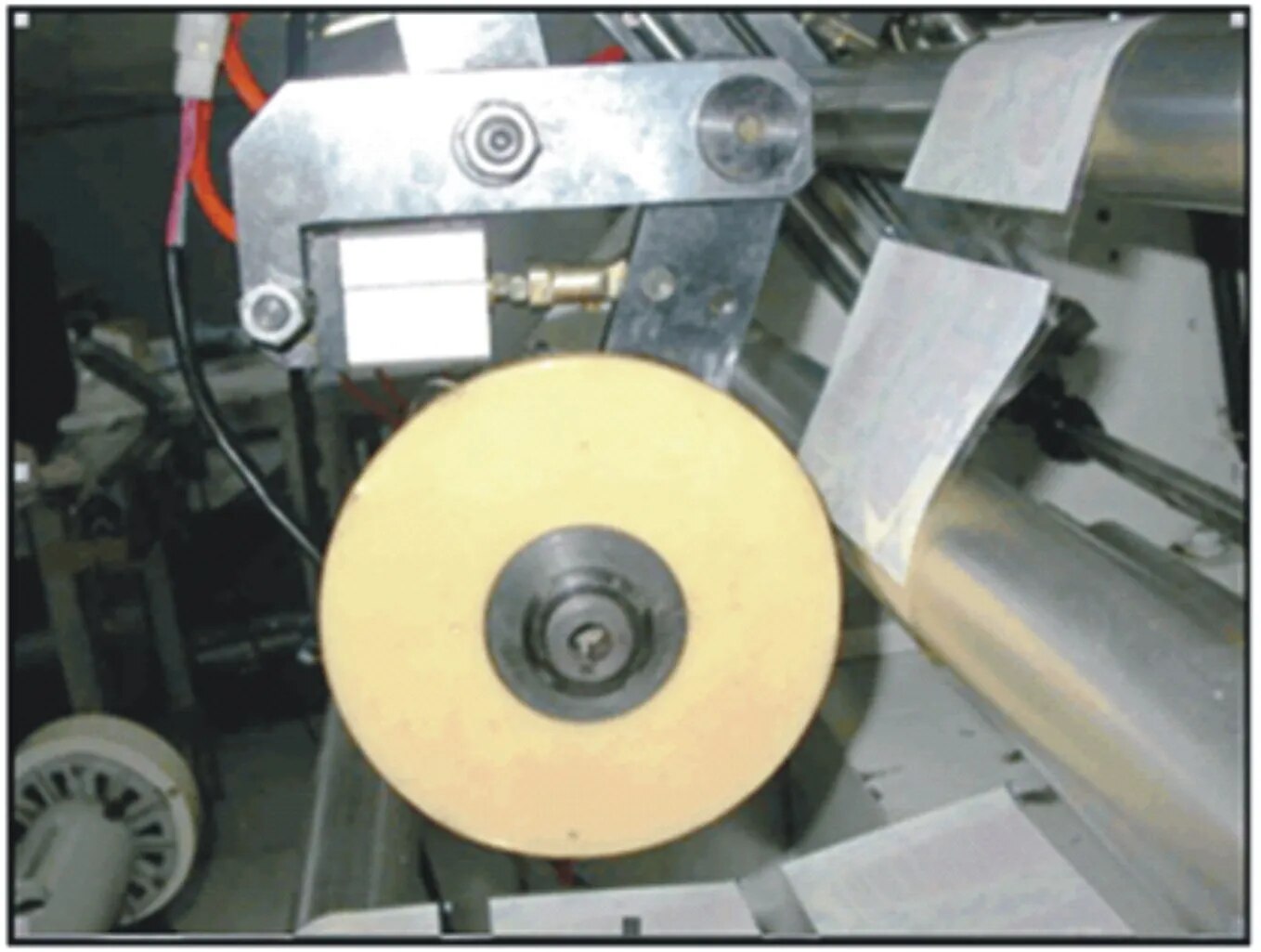

ANTI SLIP HOT MELT ADHESIVE APPLICATOR

INR 105000
Share with
Share this on :

Description

Product details

This hot melt glue will stick strong on any kind of bottle surface during heat shrink for the PVC, PET, OPS shrink label in process. Type of Adhesive used is with: Base :Ethylene Vinyl Acetate Copolymer Colour : Brownish Yellow Viscosity : 275-600 cP at 150 degree C, Softening Point : 65-75 degree C, 3.5 Density : 0.99 + 0.03 g/cm3 at 30 degree C Applicator Device This applicator device can be installed in any shrink label center/seaming machine. The glue will be applied on the back side surface of the shrink label approximately thickness 10~15 micron before process center sealing. Label size length is 100 mm, special hot melt glue line width is 10 mm. Suppose price of special hot melt glue is USD 13/Kg. Then the Cost = 0.51 Cent per meter per glue line.

  • Filter tags

Other Products

Related Products

This machine is designed for making Rat traps on boards with hot melt adhesive. Board size Min. and Max. 10” max. width and 4” min. width Coating size 200mm (Max.) X 100mm (Min.) Max. Machine Speed 3 Pcs/min @ 18 gms per pad Main Motor 1.0 KW Max Gluing Width 200 mm Glue Tank Capacity 5 kg/hr Machine Size 1000x650x1200mm Power Requirement 3 Kw, 415 V, 50 HZ, 3 Phase a) Glue melt tank 1. The shell is made of steel, square steel and 1.2mm steel plate. 2. Use aluminum alloy to build. Two-layer (upper and lower) structure. 3. Adopt high-temperature-resistant high-precision gear glue pump 4. Adopt external precise filter. 5. The glue pump speed is controlled by gear motor 6. Temperature of each layer is controlled by PID system independently 7. Max. temperature is 200℃ 8. Melt glue speed: 5 kg/hr (EVA.3000 centipoise 165℃) 9. Heating power: app. 3 KW b) Hot Hose 1. 2 m length hot melt hose provided. 2. 230V AC, 600 w power. c) Slot die 1. Coating head: Slot die temperature-resistant alloy steel. SKD210 2. Mounted on Pneumatic piston for up – down moment 3. Coating width adjustment with shims insert 4. Levelling in transfers direction to conveyor is provided. d) Transmission part 1. Main motor: 1 HP 1 set 2. Glue pump motor: 0.5 HP 1 set 3. Main machine driven by use of belt, chain and gear to transmit. e) Pneumatic control part 1. Cylinder on slot die, feeding and stopping with head: ￠50mm for each 2. Suitable solenoid valves, flow control and connectors. f) Electric part 1. Main machine VFD: 1 HP; 1 piece 2. Glue tank VFD: 1 HP; 1 piece 3. Temperature controller: digital PID 4. Heaters: 6KW 5. Touch screen: 3” 1set 6. PLC: 1 set Watch Video : https://youtu.be/Um7g4RJegGs?si=v8bQUqZMqGA1a7Ef
View Details
Rat Glue Trap Making Mini Machine

INR708000

The Rewind and Semi-Automatic Slicing Machine from Trasy Enterprises is purpose-built for precise cutting and rewinding of adhesive tapes, protective films, fabrics, nonwoven materials, and other roll-stock substrates. Designed for reliability and ease of use, it ensures smooth cutting surfaces with high efficiency, making it an ideal solution for manufacturers seeking consistent quality with minimal maintenance. Key Features User-Friendly Operation – Simple, manual cutting system ensures ease of use with high cutting efficiency. Powder Brake for Unwinding – Provides stable tension control for smooth operation. Circular Blade with Pneumatic Feeding – Guarantees clean, smooth, and accurate cuts. Cutting Width Gauge – Enables quick and stable positioning for precise cutting widths. Compact & Low-Maintenance Design – Small footprint with simple maintenance, offering both economy and efficiency. Technical Specifications Effective Width: 310 mm Maximum Unwinding Diameter: 550 mm Maximum Cutting Diameter: 180 mm Cutting Width Range: 25 – 300 mm Core Inner Diameter: 3’’ Motor Power: 1 HP Total Power Consumption: 1.5 kW
View Details
Rewind and Semi-Automatic Slicing Machine for HDPE Fabric Tape with Liner

INR240000

This machine is mainly used in: carton packaging, medical and health supplies, car lights, car interiors, filter, toys, arts and crafts. also the machine with the hot melt laminating machine and coating machine for courier bags, is widely used in the diaper, sanitary towel, package, shoes, furniture, tapes, labels, stickers and the mattress production line etc. SPECIFICATIONS FOR HOT MELT GLUE MACHINE WITH FOOT PADEL Tank Capacity 5.0 KG Max. malting rate 7.0 KGHOUR Max. Operation temp. 200 ℃ Melt Power 2160 Watt Motor Power 250 Watt Air pressure 4-6 KGCM² Demension(L*W*H) 575*740*640 mm Weight 35 Kg Max. Viscosity Cps 120,000 Gun Qty. 2 Power Requirement 230 VAC Pump Type Piston pump
View Details
Hot Melt Adhesive dispenser Double Head

INR150000
