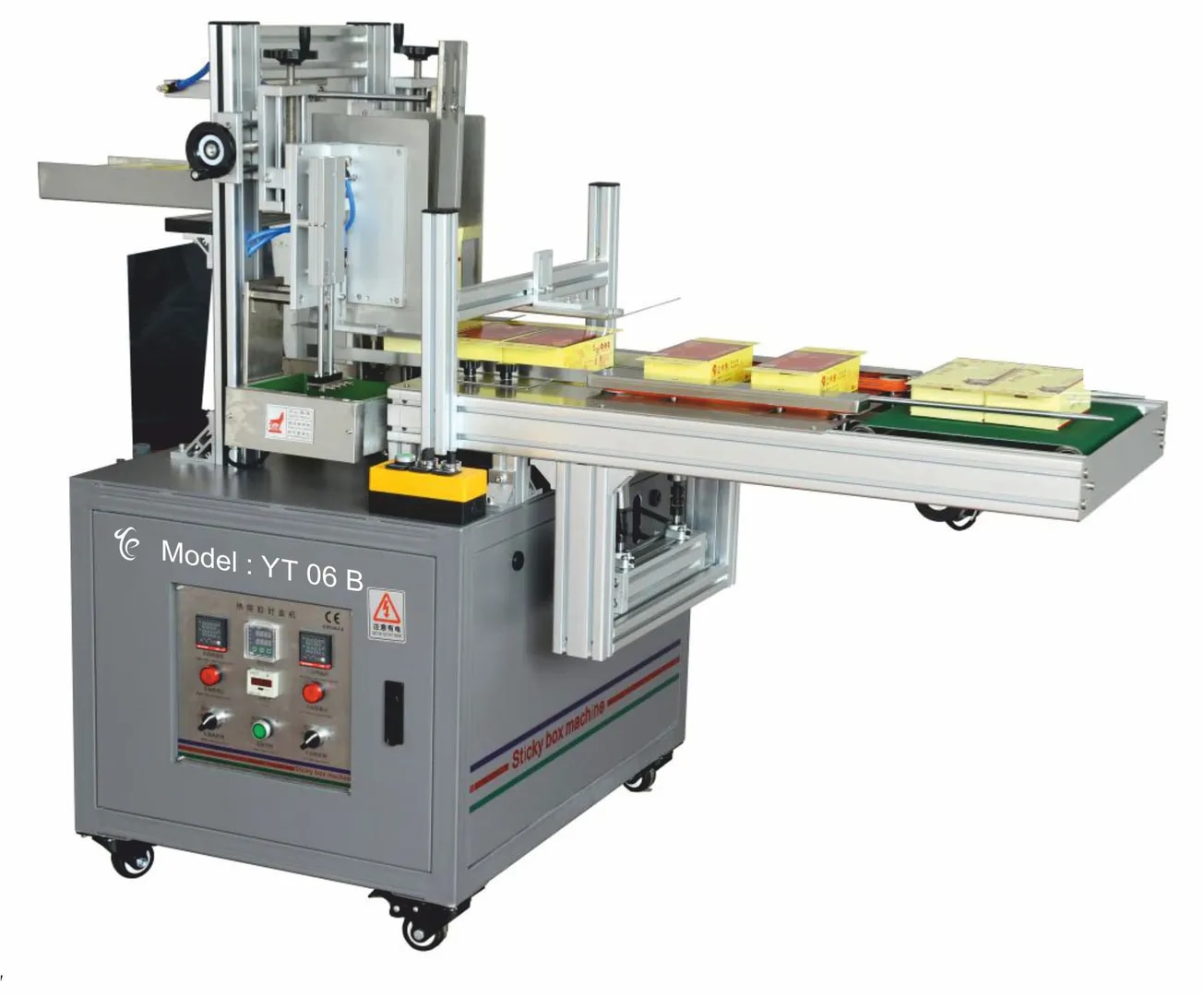

TE 06 B

Product Usage:

The semi-automatic sealing machine is suitable for hot melt Gluing and Folding of Mono/Inner cartons, of sampling box, food, hardware tools, electronic toys, stationery and electronic appliance packaging.

Features:

1. It is made of the food grade standards, the machine is made of stainless steel, aluminium components.

2. The change overs are convenient and fast.

3. Fully enclosed structure, simple and stylish appearance.

4. Optimize power consumption and meet the new concept of energy saving.

5. Simple operation, high efficiency and low input cost.

Product Specifications:

Automatic hot melt adhesive sealing machine parameters

Working voltage: 220V 50HZ

Working pressure: 0.4Mpa-0.6Mpa

Power: 3.8KW

Noise: less than 50 decibels

Sealing box size:

length 80-300mm / width 40-200mm / height 20-120mm

Working efficiency: 30-50 / min

Working temperature: 180-220 degrees

Tank capacity: 1.5kgs

Weight: 130kg

Machine Size: 1750*850*1350mm （LxWxH）

Please visit following YouTube links to watch the machine in working:

https://youtu.be/diTRxNSkSxg
