Description
Product Description
Hot Melt dispensers have quickly gained popularity as the new “hot” trend in the adhesive dispensing technology. Glue dispensers have been widely used for applications such as box packing, bookbinding, shoe sole binding, diaper sealing, Health care products etc.

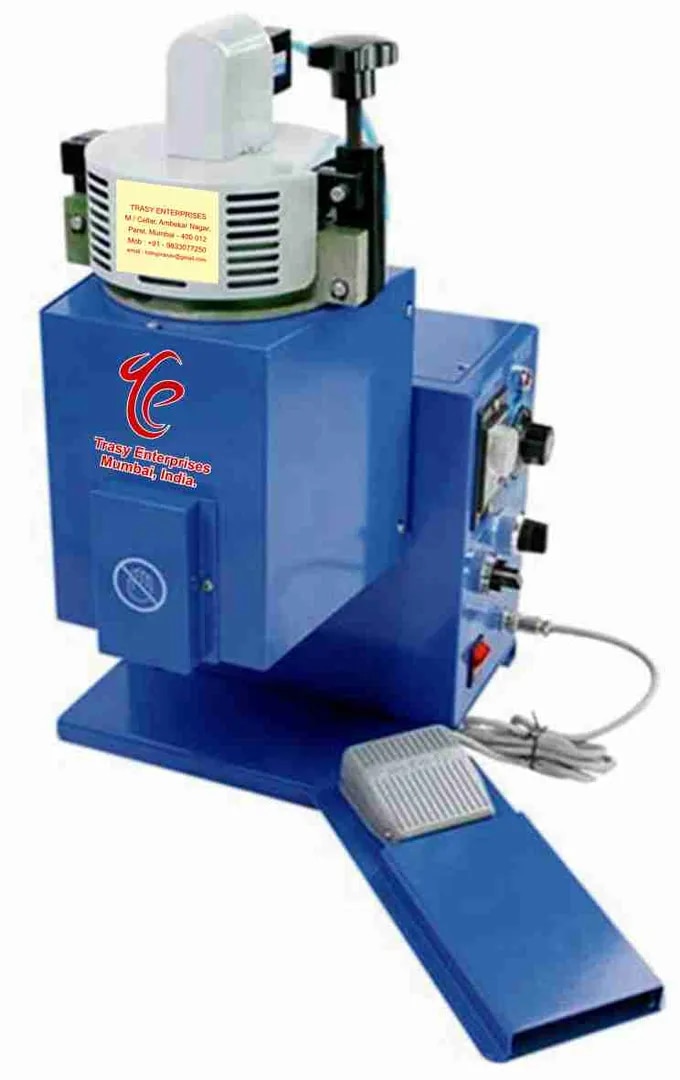

The DJ102 is our foot switch operated hot melt dispensing machine. This is good for application in products that need dot (. . . .) or line ( ____ ) or spray (ഌഞഌ) coating. This machine can be used for applications such as box and package sealing and much more. It has a tank capacity of 1.5 KG, a max. Melting rate of 2.5 KG/hr and a max temperature of 2200 C.
Advantage of Model: Cost Effective, Heavy duty, Can Spray hot melt
Disadvantage: Requires Compressed air, No sensor hence semi-automatic
HOT MELT GLUE AUTOMATIC DISPENSER are widely used in sanitary products (diapers, sanitary napkins ), air filter, non-woven composite, footwear, printing, product assembly, clothing, stickers, packaging industry (carton packaging, cigarette cases, wine Boxes, Gift Boxes, Glasses Cases, Craft Boxes, Jewelry Boxes, Color Boxes, , Coated Composites (trademark papers, labels, double-sided tapes, medical breathable tapes), Product Assemblies (Home Appliances, Furniture fittings, wire and cable) automotive industry (interior seals, headlight manufacturing, windshield assembly) book binding field and other industries.
SPECIFICATIONS FOR YT-DJ102 HOT MELT GLUE MACHINE
ITEM UINT TE-DJ102 TE -DP102
Tank Capacity KG 1.5 1.5
Max. melting rate KG\HOUR 2.5 2.5
Max. Operation temp. °C 250 220
Max. Viscosity Cps 120000 100000
Air pressure KG\CM² 4-6 4-6
Dimension(L*W*H) MM 400*400*550 400*470*550
Heating Power Watt 600 600
Power Requirement v 220 200
Weight KG 15 16
Out glue type dot/strip spraying
