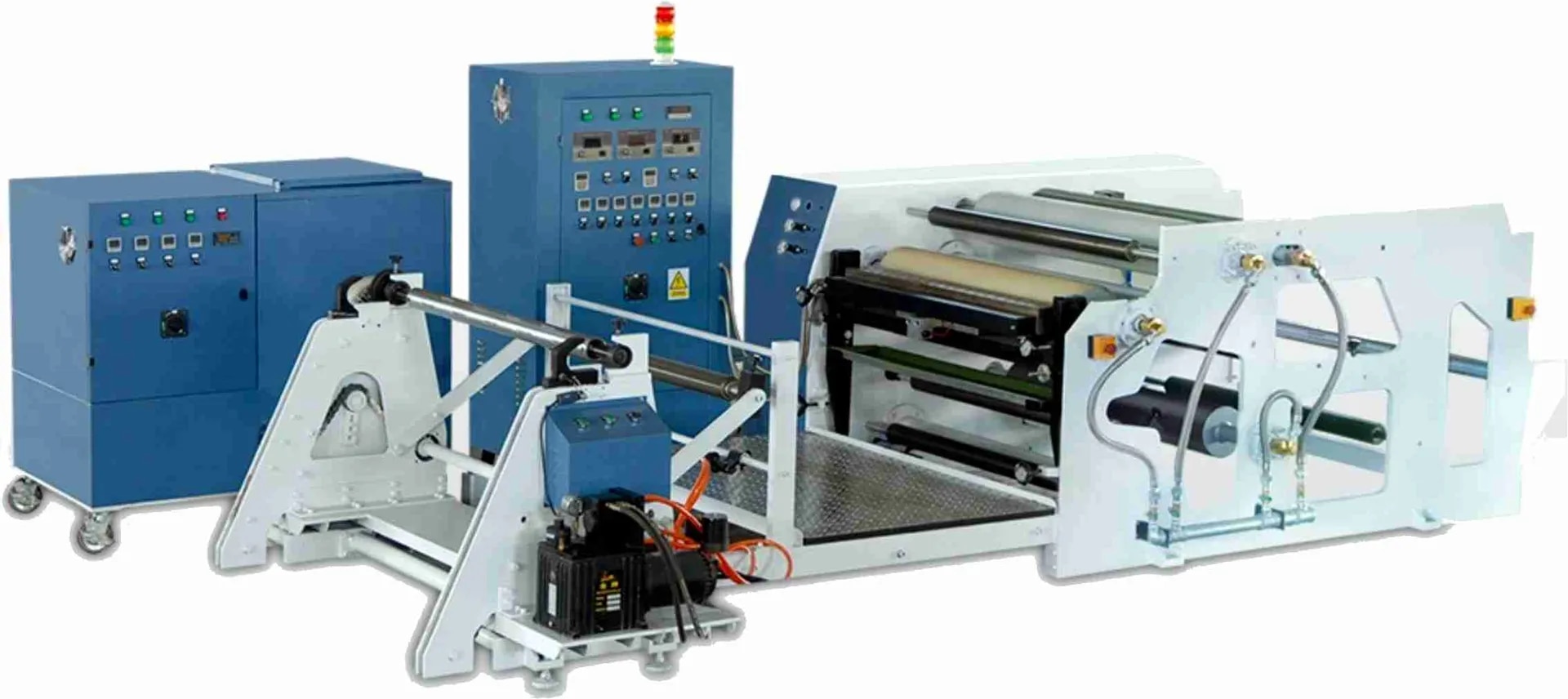

HOT MELT SLOT DIE COATING MACHINE RT type

MODEL: RT

RT Hot Melt Coating Machine is suitable for producing Nonwoven fabric coating and laminating, double-side adhesive tapes, cloth tapes, double-side foam adhesive tape, clean adhesive tape, craft paper tape, Aluminum foil tapes, fabric tapes, shoes materials and medicine tapes, etc.

Watch the Link:

https://youtu.be/bDjI9bNNl0c

Type: Coating Machine

Application: Food, Beverage, etc.

Voltage: 415 V

Power: 40KW

Certification: CE

Coating width: 400-2500mm

Coating weight: 15-200g/m2

Coating speed: 50m/min

Unwinding dimensions: 1000mm

Rewinding dimensions: 700mm

Correction device : 1 set

Length of machine: 4800mm

Height of machine: 1350mm

Main characteristic:

1. An AC converter control is used for both speed and quantity of glue feeding; the speed and glue feeding quantity can be adjusted manually or automatically.

2. Adopt intelligent PID temperature control system, the temperature controlled exactly and the error is within 1 Degree Celsius.

3. The glue melting tank is coated with the Teflon anti-sticking layer; it can prevent the hot melt adhesive against carbonization efficaciously.

4. The precision metric gear pump on the machine can make it steadier to supply the adhesive.

5. The high precision of alloy steel spray head can guarantee high quality coating result.

6. The high efficiency cooling device insures the applicable range of the basic materials.
