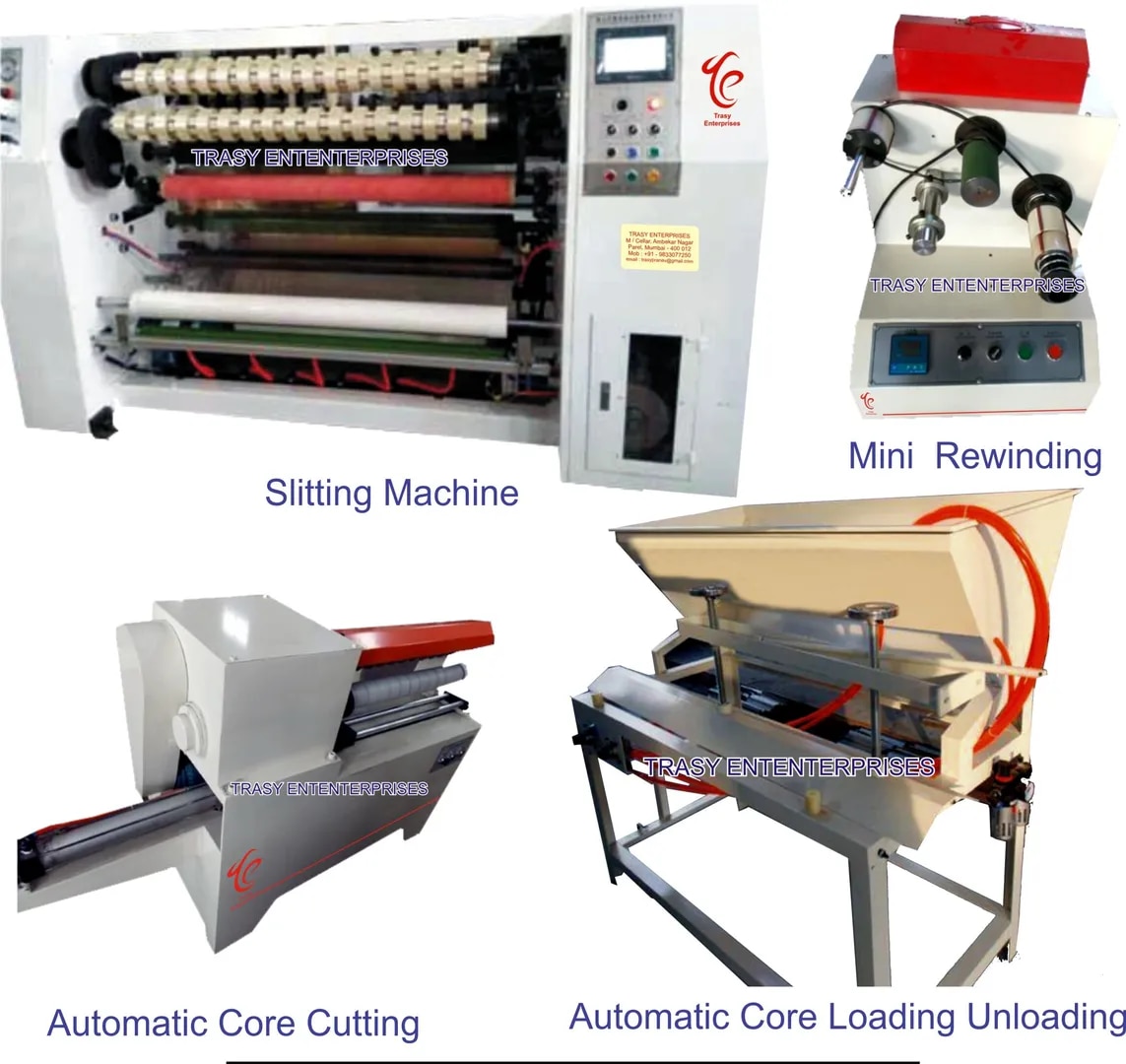

BOPP Tape Slitting Machine

We are an Indian company having manufacturing unit in Mumbai, Kurla; as well as in kunshan, China. the above said set is manufactured in China and will be supplied to you under name of our company with warranty of 12 months.

The production speed: This set of 4 machines can cut 1300 mm wide Jumbo roll. one can convert about 100 boxes in 8 hours or a Jumbo roll of 4000 metres can be converted in 1 hour 45 minutes

Feature

1. Full-automatic four-shaft exchange is adopted and the efficiency is improved.

2. Stepless speed regulation of frequency conversion and three-step length setting provide smooth rewinding operation to ensure accurate rewinding length. It can automatically decelerate and stall when operating at high speed.

3. The unwinding tension is adopted with pneumatic braking control. The rewinding tension is adopted with the dual control equipped with the clutch and the independent slide setting for free adjustment of the tensile force.

4. The curved stretch roller is designed to eliminate tape wrinkling during extension and feeding.

5. Pneumatic brake brings the machine to an immediate halt for accurate positioning and labeling.

6. (Optional) Auto labeling and slitting stationery tape functions.

Main Technical Parameters

model TE 008-1300 TE 008-1600

Effective width 1320 mm 1620 mm

Max. unwind diameter 800mm 800mm

Min. slitting width 12mm 12mm

Max. rewind diameter

(shaft1") exchange 4 shafts 75mm 75mm

(shaft3") exchange 4 shafts 150mm 150mm

Max. rewind diameter

(shaft3") exchange 2 shafts 300mm 300mm

Machine speed 0-180m/min 0-180m/min

Slitting blade 0.2×22×60mm 0.2×22×60mm

Main power 5.5KW 5.5KW
