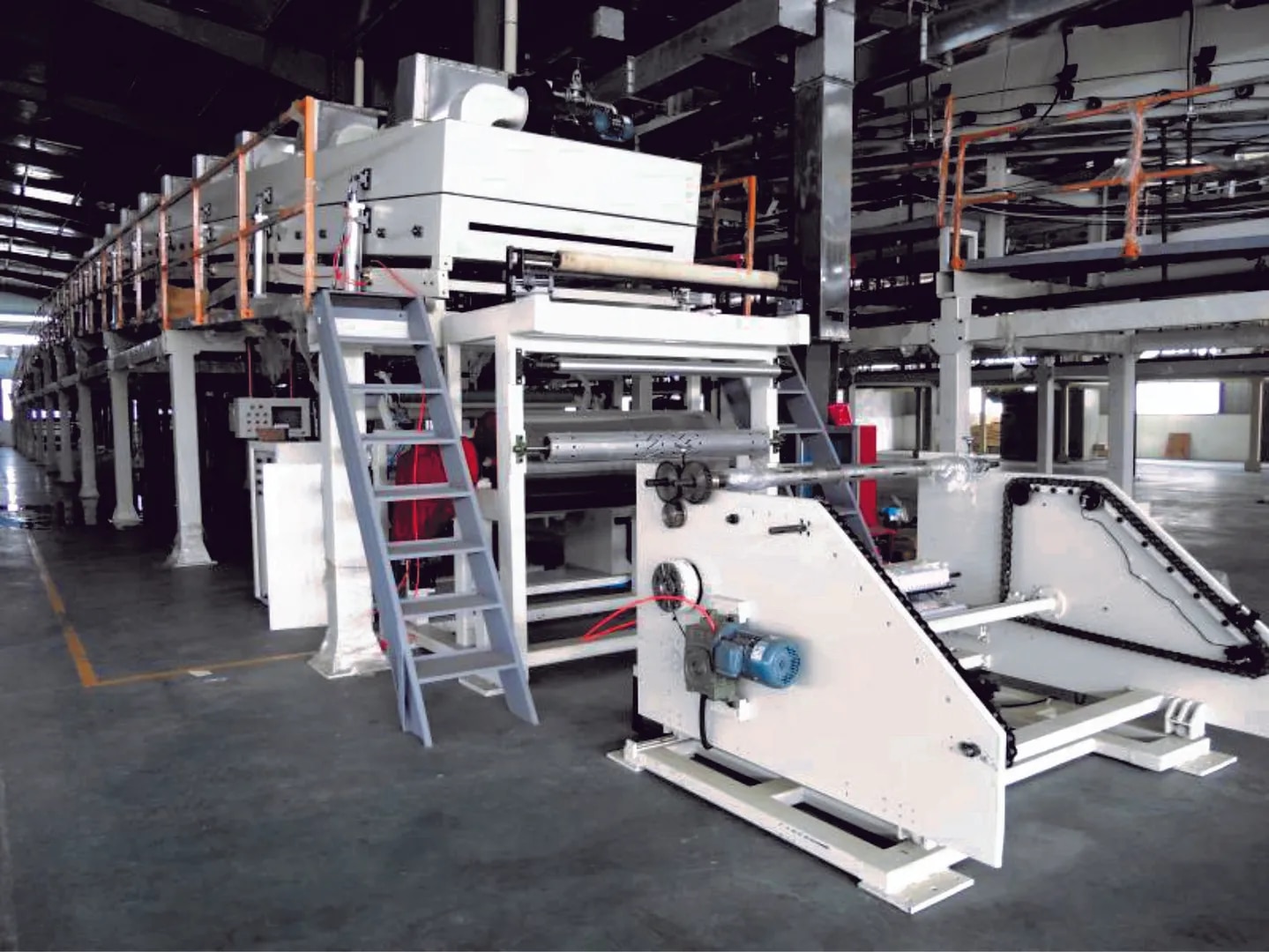

BOPP tape coating machine 1300 mm

Machine is mainly composed of coating and base material feed unit, the traction unit, coating unit, oven and hot air systems, cooling device, winding unit, electrical control and relevant control instrument, etc.

Power : 3 phase 5 wire, 50 HZ, 380 v ± 10%

Air pressure : 0.8Mpa,

Coating and substrate: BOPP plastic film, 23-35µm (thickness of the adhesive tape after coating is 37-70µm)

Types of glue : Emulsion acrylate pressure-sensitive adhesive

The viscosity of the glue: 100-1000mPa.S

A pressure sensitive adhesive solids: 50-55%

Coating method : The comma blade reverse transfer coating

Rubber coating weight (dry glue): 15-30g/m2

Tension range : 3-30kg

Material maximum width: 1300mm

The guide roll width: 1350mm

Mechanical maximum speed: 60m/min

Maximum working speed: 0-40m/min

The paper core specification:3″（inner diameterΦ76mm ）

Material support : 3″Inflatable shaft

The length of the oven: 18m（6group, 3m/group）

The highest drying temperature: 120℃

Heating method : Electric heating, hot air drying

Electric heating power: 36 kw

Machine weight : About 3500kg

Size of the machine: About 20200*1850*2600mm (L*W*H)
