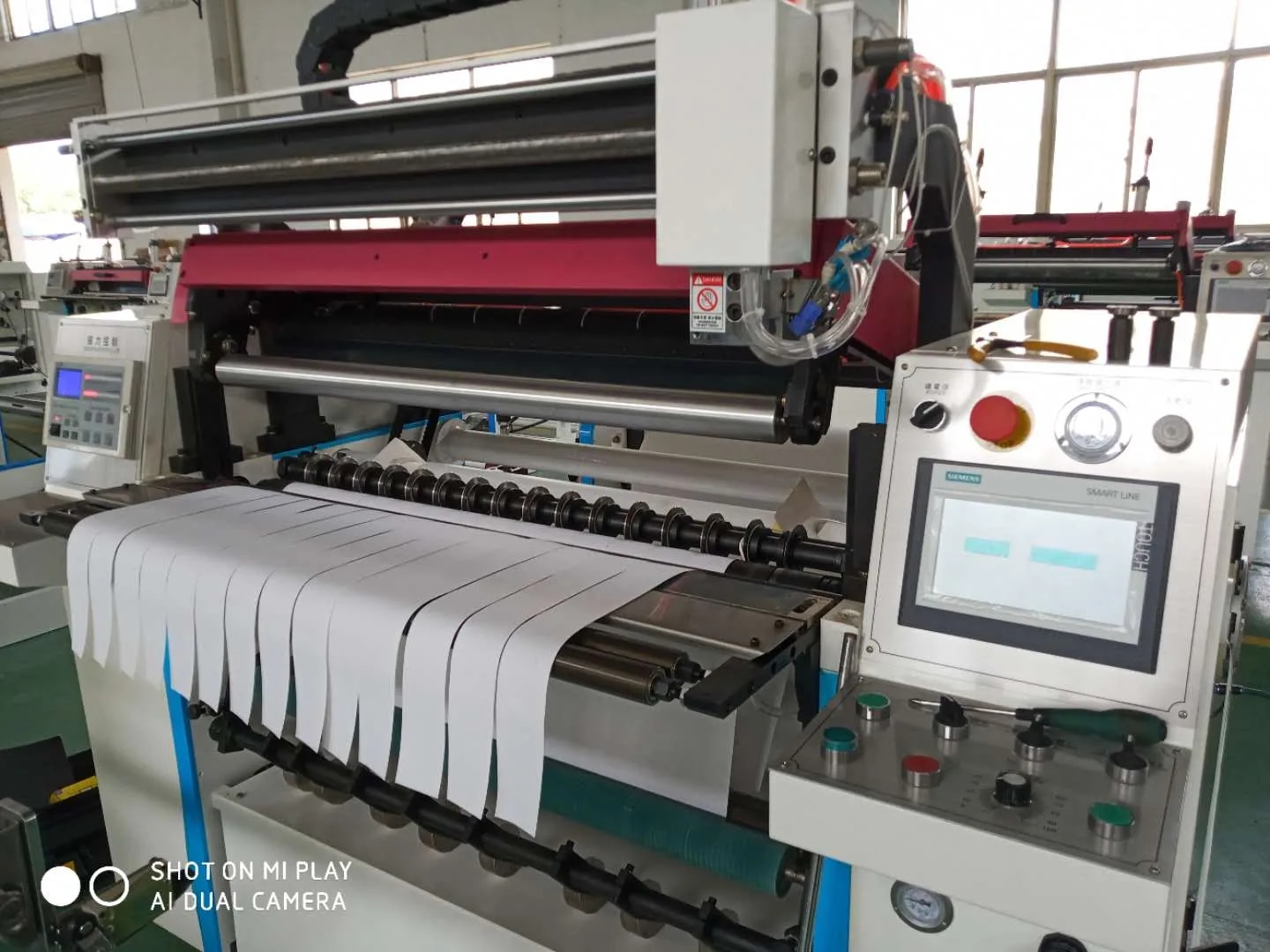

Automatic Thermal Paper Slitting Machine

Application:

This machine can slit at high speed, automatic making of thermal paper roll. Suitable for making POS roll, lottery ticket rolls, cash register rolls, invoice rolls, slitter, rewinder.

Technical Description:

Automatic Slitter rewinder has operating system interface and monitoring function

Slitting with circular sheer cutting blades. The length/diameter settings via the touch screen. The whole stick rolls push out, cutting the rolls at set length position with automatic gluing device and Mark device with a uniform ink marker, mark length and width can be adjusted, low loss, easy operation, no leakage marking.

Trim waste paper collect device with blower. 2 Automatic core loader device (standard)

Unwinder： 1roll

Unwinder core diameter： 76mm

Web width： Max.900mm

Web diameter： Max1000mm

Slitter width: Min. 30mm

Rewinder diameter: 30 - 180mm

Rewinder core diameter： 12-25mm

Air supply： ≥0.8 mpa

Speed： 200m/min(1ply)

Core shaft length： 900mm

Core shaft Dia.： 12-25mm

Speed： MAX.100 pcs/min

Rewind Shaft Diameter: 12mm

Spacer： 1set

Knife seat： 10 pcs

Blade knife： 10 pcs

Bottom knife： 10 pcs
